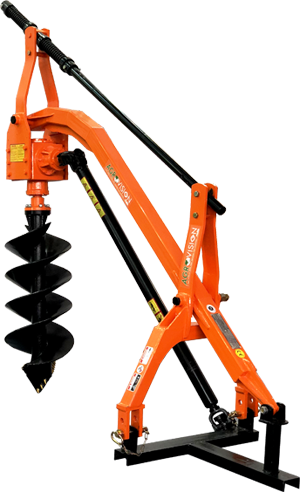

Post Hole Digger

  • It is a PTO driven implement.
  • Fastest method to make pits / holes.
  • It can drill / dig holes of 6" , 9" , 12" , 18" and 24" diameter.
  • Robust and highly efficient gear box.
  • PTO shaft with shear bolt for overload protection.
  • Easy and quick attachment to tractor.

Available Shades

shades

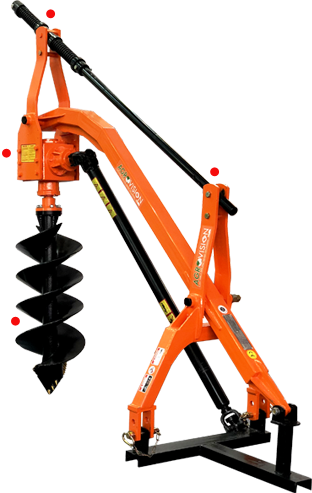

Features

Desgined

Designed for toughest operations

Disc Ridger

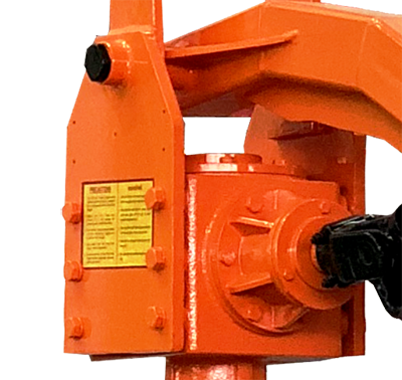

Extra Heavy Duty Gear Box

Disc Ridger

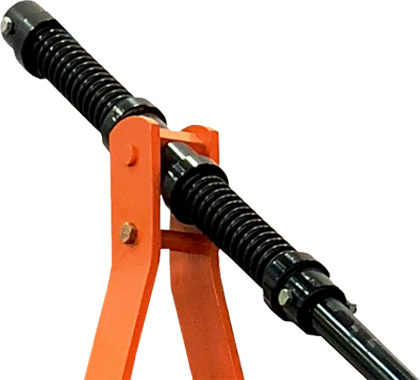

Shocker for vibration control

Disc Ridger

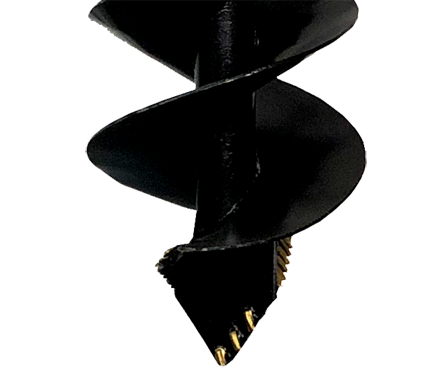

Augur Angle Adjustment

Disc Ridger
Disc Ridger
Disc Ridger
Disc Ridger
Disc Ridger

Technical Specification

Product Code A-PHD
Input Rpm 540
Gear Box Compatible with 90 HP Tractors (Max.)
Main Frame Structure 90 x 90 mm
3 Point Linkage 65 x 65 mm
Bearings Taper Roller
P.T.O Telescope Type with Shear Bolt
Nut / Bolts High-Tensile
Tractor Power Required 35 HP & Above
Approx Weight 300 Kgs.
video

* The Weight and working data contained are supplied for information only and are not binding. Specification ad size can be altered as a part of ongoing product modification/imporvement.
