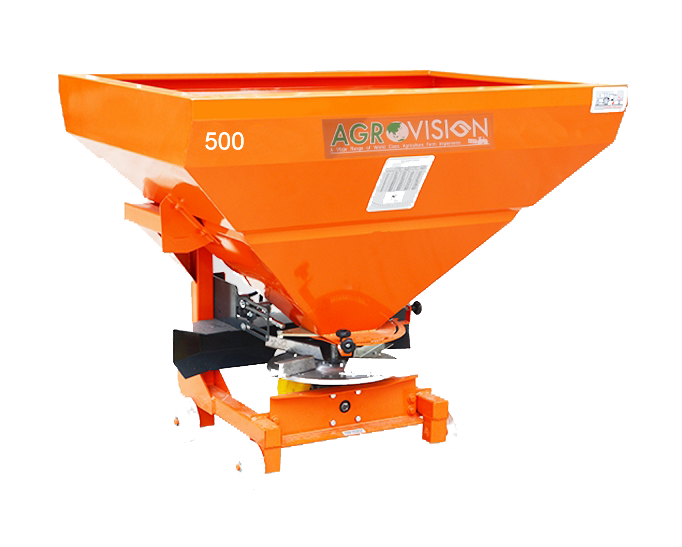

FERTILIZER SPREADERS - SQUARE

FERTILIZER SPREADERS - SQUARE


  • It allows the operator to spread fertilizers in larger land portion in lesser time.
  • They can spread the fertilizer fall on 12 to 14 meter width in field.
  • Their unique distributing system ensures uniform spreading of fertilizers over greater distances.
  • The gear box absorbs sudden changes in power and keeps the machine safe.
  • Adjustable positions to obtain maximum spreading precision.
  •  Filter Mesh to avoid mixing of unwanted objects.
  • Transparent fertilizer level indicator.
  • Robust Gear Transmission.

FERTILIZER SPREADERS - SQUARE

Horsepower Required

20 - 50 HP

Working Widths

10 – 14 Meter

Hitch Types

CAT-II

Available Colors

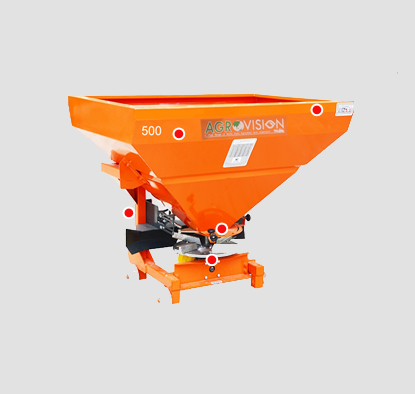

Features

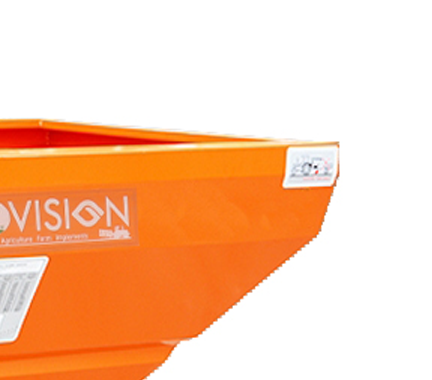

Fertilizer Hopper

Fertilizer Hopper

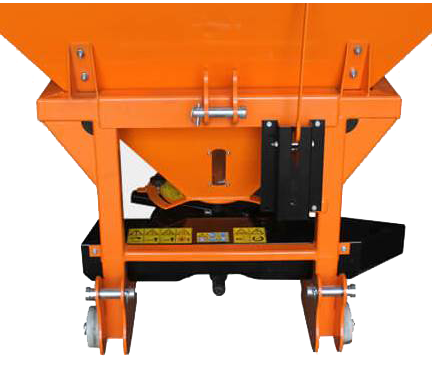

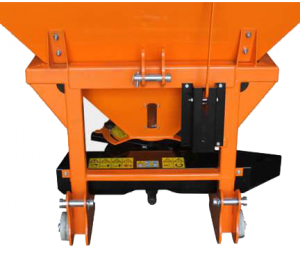

Robust Frame Structure

Robust Frame Structure

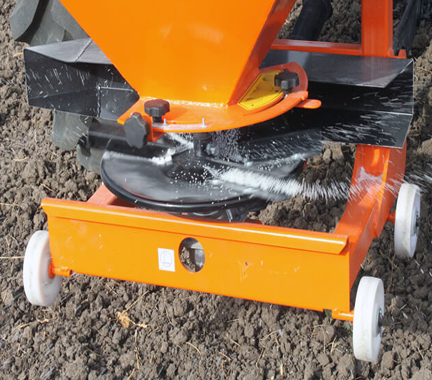

Spreading Disc

Spreading  Disc

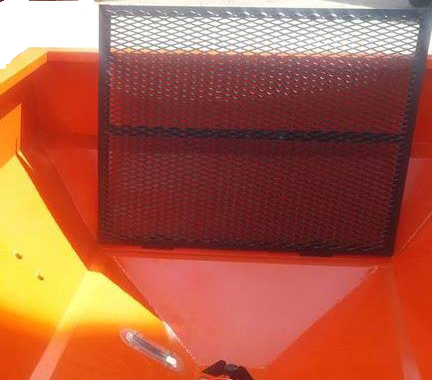

Filter Mash

Filter Mash

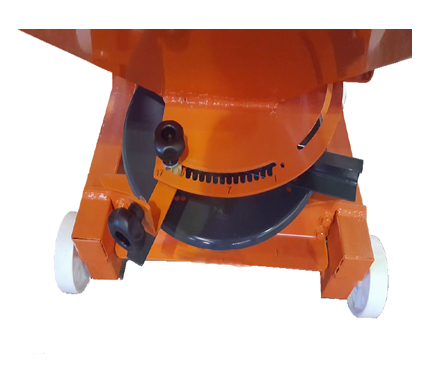

Adjust Knobs

Adjust Knobs
Fertilizer Hopper
Robust Frame Structure
Spreading  Disc
Filter Mash
Adjust Knobs

Technical Specification

MODEL A-FS180 A-FS250 A-FS400
HOPPER CAPACITY 180 Ltr. 250 Ltr. 400 Ltr.
HOPPER TYPE Square Square Square
NO. OF SPREADING DISC 1 1 1
WORKING WIDTH 10 – 14 Meter 10 – 14 Meter 10 – 14 Meter
AGITATOR SYSTEM Vertical Vertical Vertical
GEARBOX RATIO 1 : 1 1 : 1 1 : 1
PTO RPM 540 540 540
APPROX. WEIGHT 60 Kg. 80 Kg. 120 Kg.
TRACTOR POWER 20 - 30 HP 30 - 40 HP 40 - 50 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
