Hydraulic Side Shift Flail Mower

The AGROVISION hydraulic side shift flail mower, also known as the mulcher mower is designed with heavy-duty/medium -duty constructions with a hydraulic operational system.
The side shift operational system is suitable for getting up close to tree and fence lines.
It can easily connect to all tractor and comes with 540 RPM PTO Speed Gear Box.
It is available rear roller.

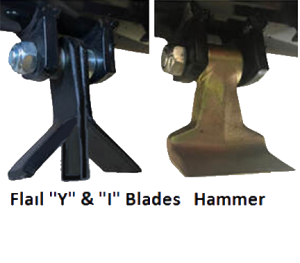

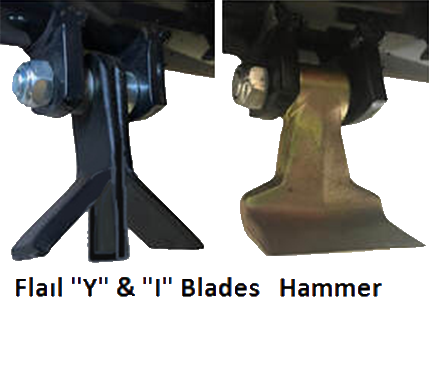

It is available with hammers as well as knives.
Protective front fender/guards.
Adjustable pair of wear protective skids.

Technical Specification

MODEL	A-FM145/HSS	A-FM160/HSS	A-FM175/HSS	A-FM205/HSS	A-FM220/HSS
OVERALL WIDTH	1620 mm	1770 mm	1920 mm	2220 mm	2370 mm
OVERALL HEIGHT	1050 mm	1050 mm	1050 mm	1050 mm	1050 mm
WORKING WIDTH	1450 mm	1600 mm	1750 mm	2050 mm	2200 mm
THREE POINT LINKAGE	CAT I & II	CAT I & II	CAT I & II	CAT I & II	CAT I & II
NO. OF BLADE (Y & I TYPE)	36+18	40+20	44+22	52+26	56+28
PTO INPUT SPEED	540 RPM	540 RPM	540 RPM	540 RPM	540 RPM
MANUAL SIDE SHIFT	300 mm (MAX.)	300 mm (MAX.)	300 mm (MAX.)	300 mm (MAX.)	300 mm (MAX.)
SIDE TRANSMISSION TYPE	4 Belts (BX Type)	4 Belts (BX Type)	4 Belts (BX Type)	4 Belts (BX Type)	4 Belts (BX Type)
GEAR BOX	Free Wheel Gear Box	Free Wheel Gear Box	Free Wheel Gear Box	Free Wheel Gear Box	Free Wheel Gear Box
APPROX. WEIGHT	580 Kg.	640 Kg.	680 Kg.	735 Kg.	800 Kg.
REQUIRED TRACTOR	40-80 HP	40-80 HP	50-80 HP	50-80 HP	50-80 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
