India Agrovision Implements

Manual Side Shift Flail Mower

The AGROVISION manual side shift flail mower is designed with medium-duty construction with a manual side shift operational system.
The machine is suitable for cutting the grass. Used to maintain the soil grass in gardens, parks, and golf courses.
It can easily connect to all tractors and comes with 540 RPM PTO speed Gear Box.
Adjustable rear roller.

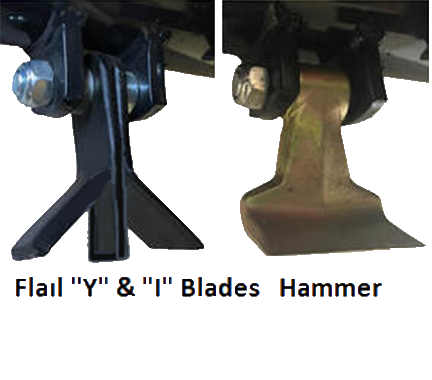

It is available with hammers as well as knives.
Protective front fender/guards.
Adjustable pair of wearing protective skids.

Technical Specification

MODEL	A-FM145/MSS	A-FM160/MSS	A-FM175/MSS	A-FM205/MSS	A-FM220/MSS
OVERALL WIDTH	1620 mm	1770 mm	1920 mm	2220 mm	2370 mm
OVERALL HEIGHT	1050 mm	1050 mm	1050 mm	1050 mm	1050 mm
WORKING WIDTH	1450 mm	1600 mm	1750 mm	2050 mm	2200 mm
THREE POINT LINKAGE	CAT I & II	CAT I & II	CAT I & II	CAT I & II	CAT I & II
NO. OF BLADE (Y & I TYPE)	36+18	40+20	44+22	52+26	56+28
PTO INPUT SPEED	540 RPM	540 RPM	540 RPM	540 RPM	540 RPM
MANUAL SIDE SHIFT	300 mm (MAX.)	300 mm (MAX.)	300 mm (MAX.)	300 mm (MAX.)	300 mm (MAX.)
SIDE TRANSMISSION TYPE	4 Belts (BX Type)	4 Belts (BX Type)	4 Belts (BX Type)	4 Belts (BX Type)	4 Belts (BX Type)
GEAR BOX	Free Wheel Gear Box	Free Wheel Gear Box	Free Wheel Gear Box	Free Wheel Gear Box	Free Wheel rear Box
APPROX. WEIGHT	560 Kg.	620 Kg.	660 Kg.	715 Kg.	780 Kg.
REQUIRED TRACTOR	40-80 HP	40-80 HP	50-80 HP	50-80 HP	50-80 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
