India Agrovision Implements

Offset Flail Mower

The AGROVISION Offset flail mower is designed in a heavy frame structure with a hydraulic arm to facilitate the mowing off sloppy off-grounds side of roads, farms, and trenches.
It can easily connect to all tractors with CAT. I, II, & III Three-point linkage.
Adjustable rear roller.
Its 150-degree maneuverability allows it to be used in multiple areas and corners.

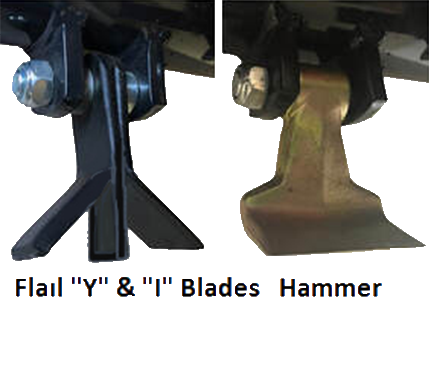

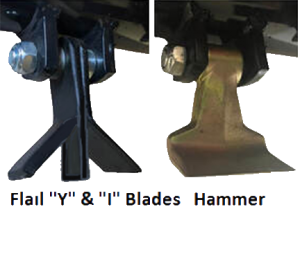

It is available with hammers as well as knives.
Protective front fender/guards.
The mower can operate at a 60-degree decline position.
Equipped with 3 or 4 transmission belts to transfer power to the rotor.

Technical Specification

MODEL	A-OFM160	A-OFM175	A-OFM205
OVERALL WIDTH	1770 mm	1920 mm	2220 mm
WORKING WIDTH	1600 mm	1750 mm	2050 mm
THREE POINT LINKAGE	CAT-II	CAT-II	CAT-II
NO. OF BLADE (Y & I TYPE)	40+20	44+22	52+26
PTO INPUT SPEED	540 RPM	540 RPM	540 RPM
SIDE TRANSMISSION TYPE	4 Belts (BX Type)	4 Belts (BX Type)	4 Belts (BX Type)
GEAR BOX	Free Wheel Gear Box	Free Wheel Gear Box	Free Wheel Gear Box
APPROX. WEIGHT	660 Kg.	695 Kg.	720 Kg.
REQUIRED TRACTOR	55-110 HP	70-110 HP	85-110 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
