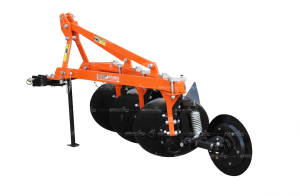

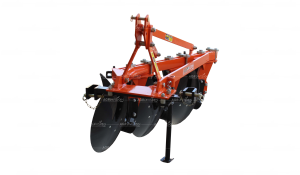

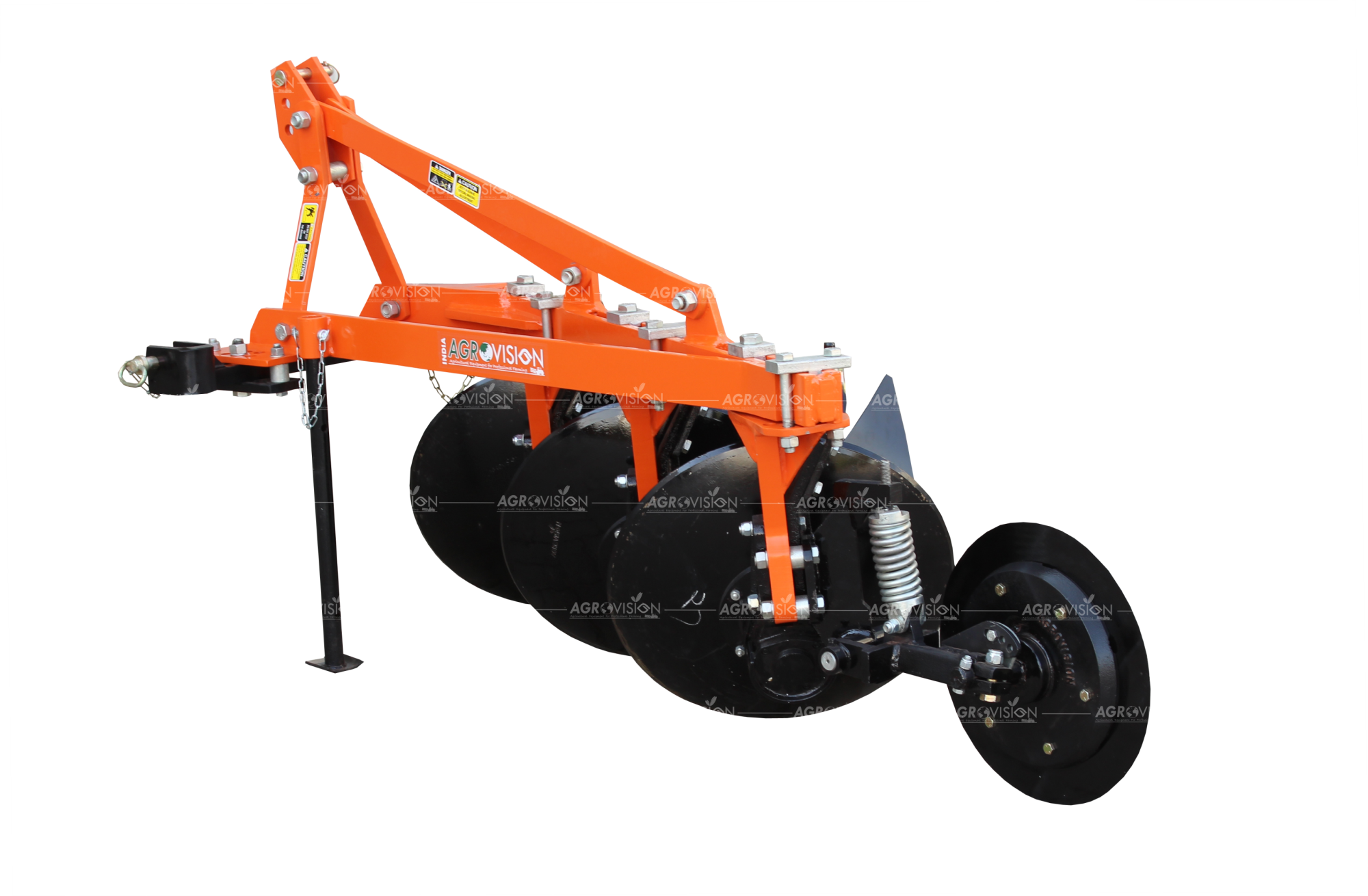

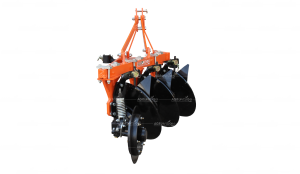

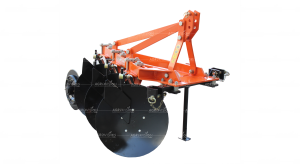

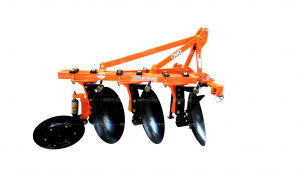

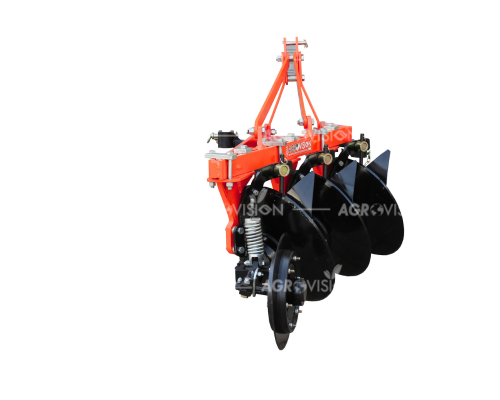

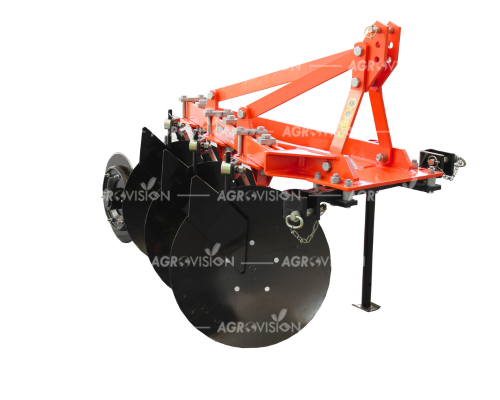

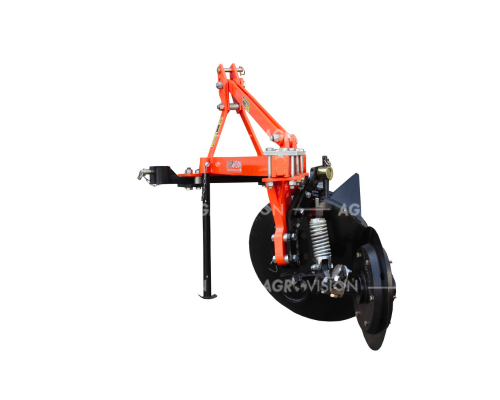

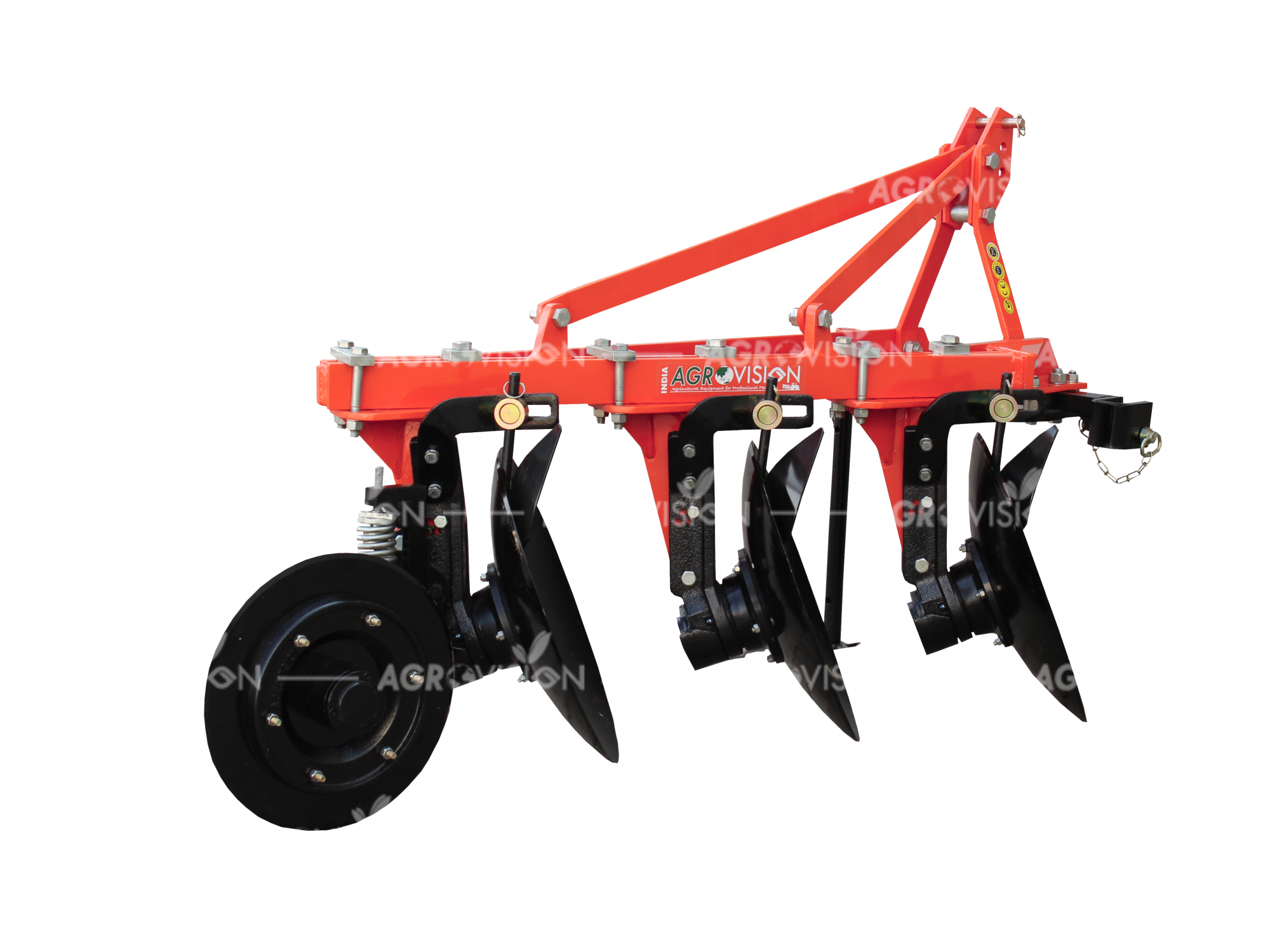

BHEEM DISC PLOUGH

BHEEM DISC PLOUGH is designed to work in adverse soil conditions. It is used for basic functions such as breaking, raising, turning and mixing of soil. It allows for better soil penetration.

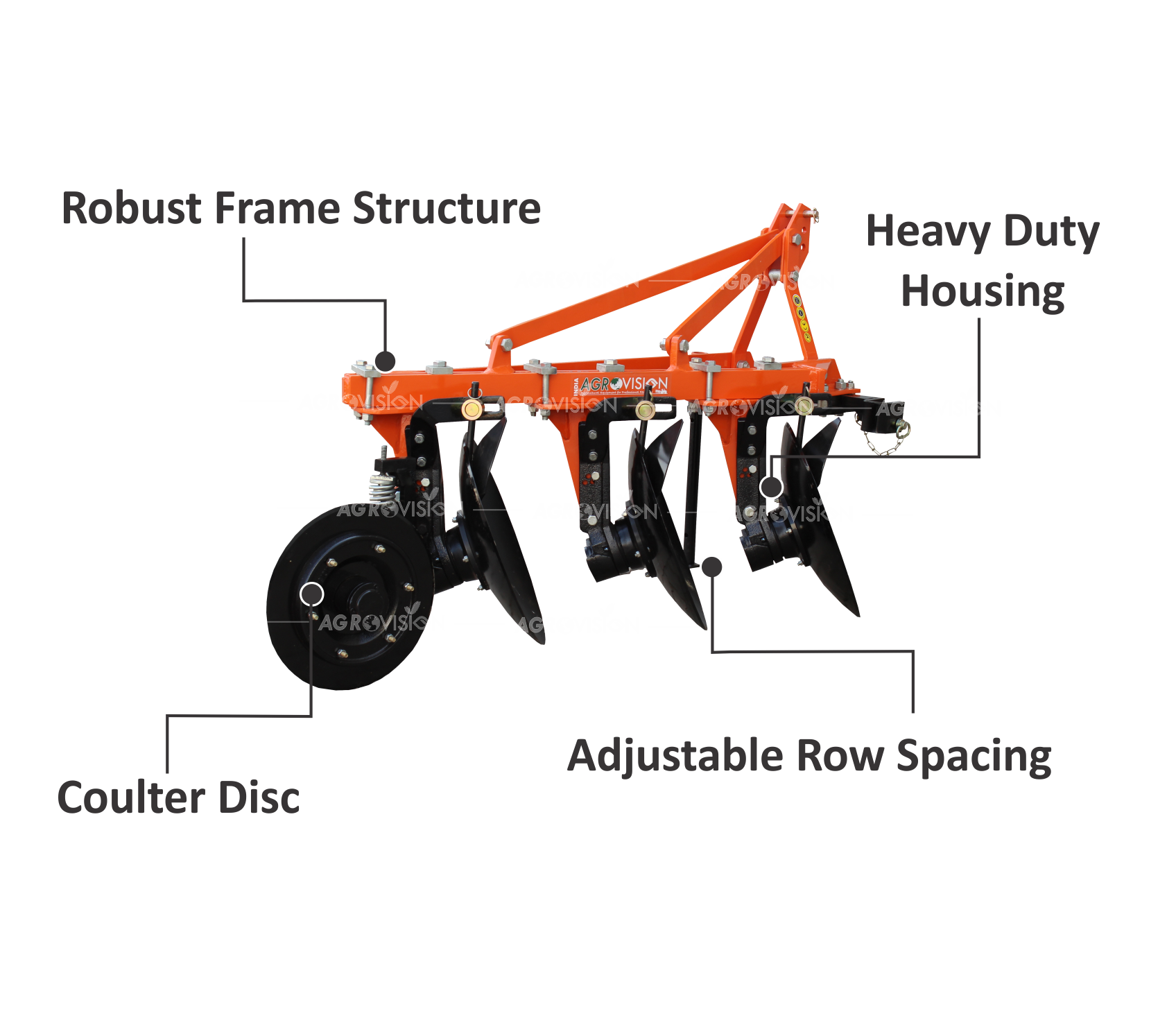

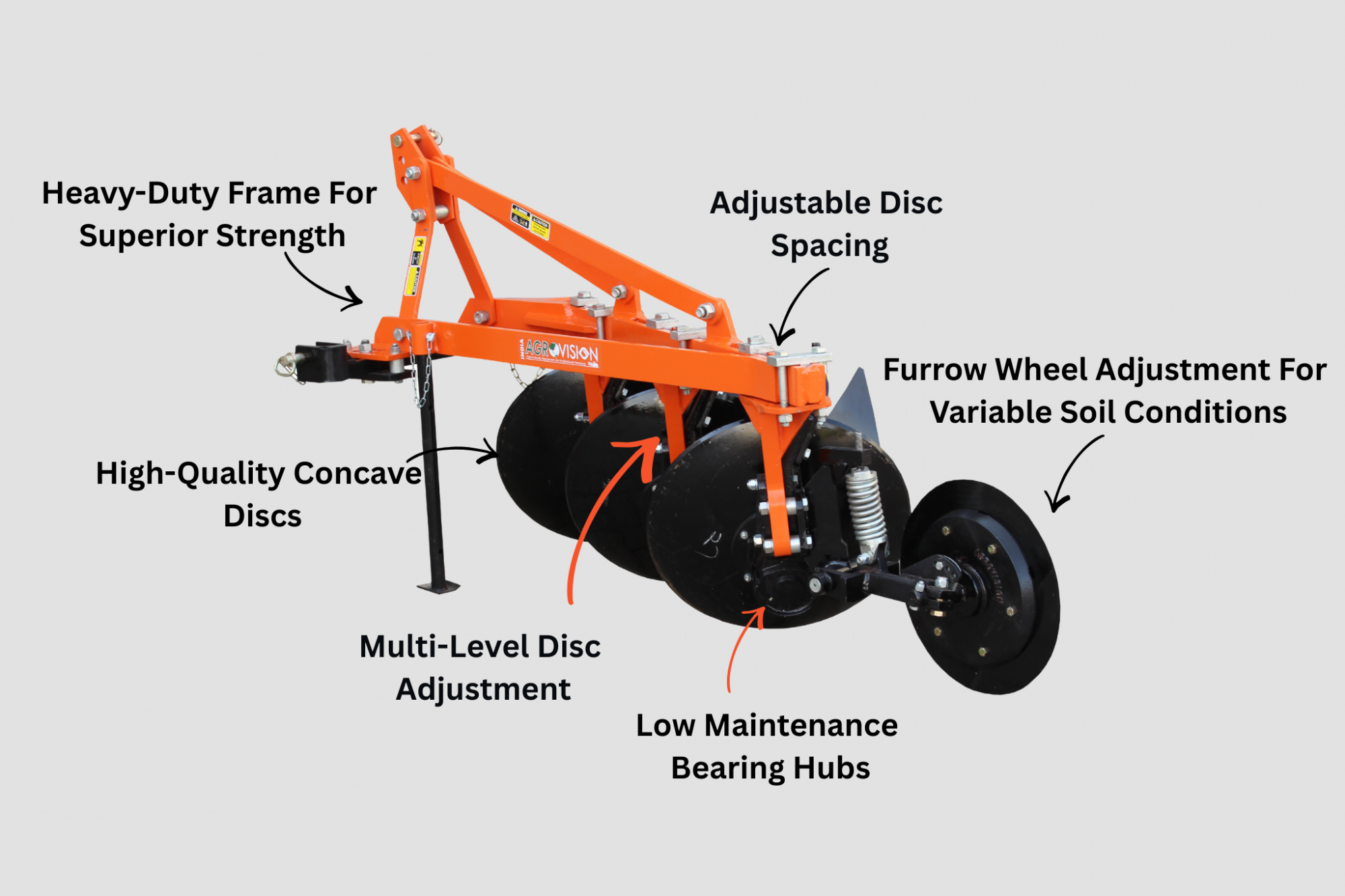

Strong Frame Structure for toughest operations.
Individual or combined cutting angle adjustment of the discs.
Adjustable vertical & horizontal angle of discs.
Floating furrow wheel ensuring culting angle adjustment and side draft control.
Adjustable independent disc scrapers.

Horsepower Required

40 - 110 HP

Working Widths

480 - 1605 mm

Hitch Types

CAT-II / CAT-III

Available Colors

Features

Technical Specification

DESCRIPTION	A-BDP2	A-BDP3	A-BDP4	A-BDP5
NO. OF DISC	2	3	4	5
DISC SIZE	660 x 6 mm (26") Plain or Notched Disc / 710 x 7 mm (28") Plain or Notched Disc **
MAIN FRAME	90 x 20 mm Flat / 90 mm Square Tube **
WORKING WIDTH	470 - 520 mm	815 - 865 mm	1060 - 1110 mm	1455 - 1505 mm
APPROX. WEIGHT	350 kg (772 lbs)	460 kg (1014 lbs)	570 kg (1257 lbs)	750 kg (1653 lbs)
RECOMMENDED TRACTOR	45 - 55 HP	55 - 65 HP	75 - 90 HP	90 - 110 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
