REVERSIBLE DISC PLOUGH

REVERSIBLE DISC PLOUGH is a heavy-duty tractor mounted implement designed for efficient primary tillage, soil turning, and deep ploughing in all field conditions.

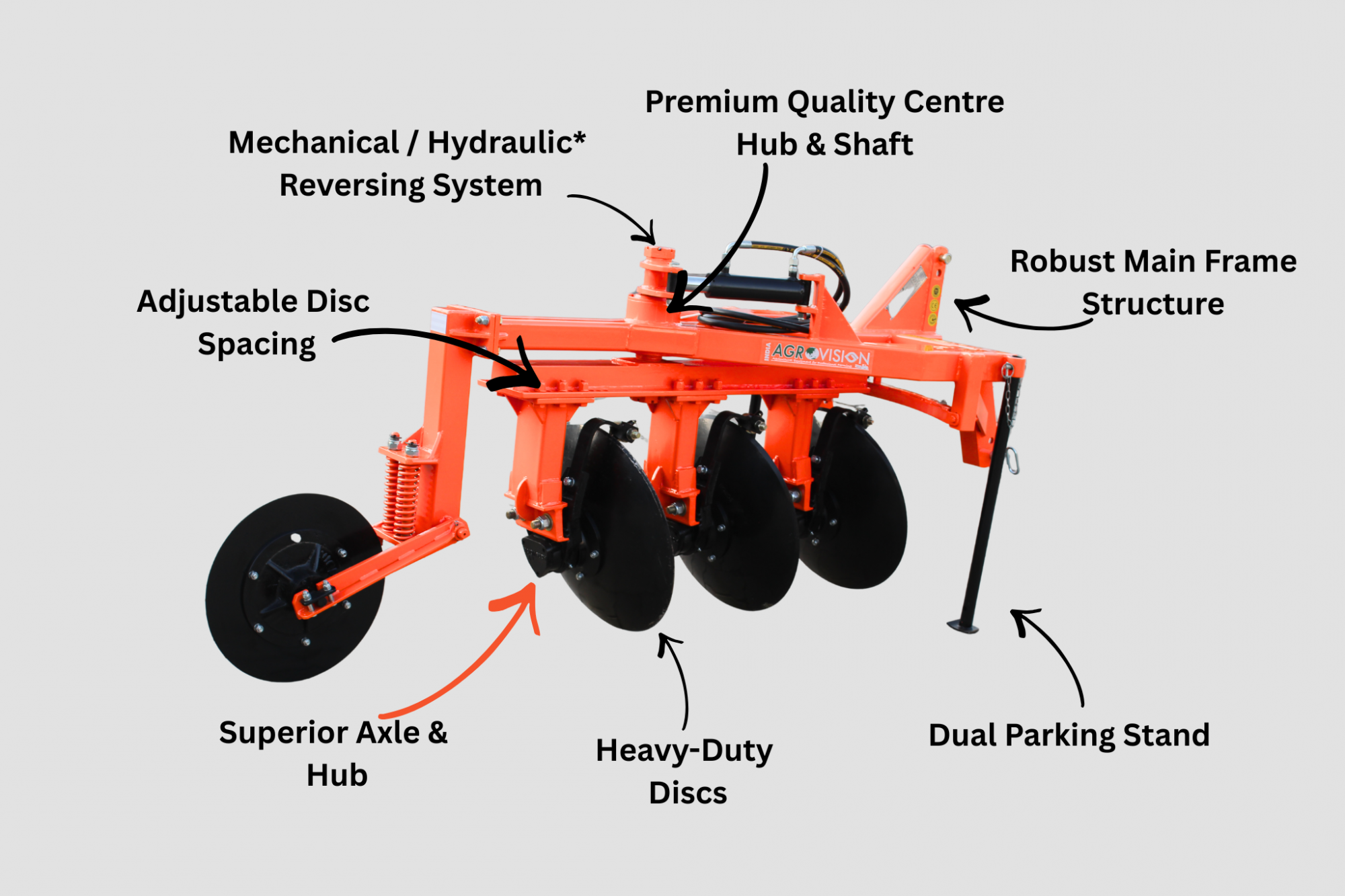

Its hydraulic and mechanical reversing mechanism allows the plough to work in both directions, eliminating dead furrows and ridge formation for a level field finish.
High-quality concave discs provide excellent soil penetration and complete soil inversion, even in hard, dry, rocky, sticky, and residue-covered soils.
The reversible design improves field efficiency by reducing non-productive turning time and increasing overall productivity.
Adjustable disc spacing and durable scrapers ensure smooth operation, better soil flow, and reduced clogging during ploughing.
Built with a robust frame and premium components for long service life, low maintenance, and reliable performance in demanding conditions.
Ideal for land preparation, crop residue incorporation, orchard farming, and seedbed preparation while reducing tractor load and fuel consumption.

Horsepower Required

40 - 105 HP

Working Widths

500 - 1150 mm

Hitch Types

CAT-II

Available Colors

Technical Specification

MODEL	A-RDP2	A-RDP3	A-RDP4
FRAME	114X114 mm & 132 x132 mm Square Tube	114X114 mm & 132 x132 mm Square Tube	114X114 mm & 132 x132 mm Square Tube
AXLE TYPE	Spindle	Spindle	Spindle
NO. OF DISCS	2	3	4
TYPE OF DISCS	Plain	Plain	Plain
DISC DIAMETER	660 mm / 710 mm	660 mm / 710 mm	660 mm / 710 mm
COULTER DISC	500 mm	500 mm	500 mm
DISC SPACING	570 mm	570 mm	570 mm
BEARING HUBS	2	3	4
TILLAGE DEPTH	250 mm	250 mm	250 mm
APPROX. WEIGHT	330 Kg.	450 Kg.	580 Kg.
REQUIRED TRACTOR	40 - 60 HP	65 - 85 HP	90 - 105 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
