COMPACT DISC HARROW - EURO SERIES

Euro Series Compact Disc Harrow is designed for efficient soil preparation, producing a fine and uniform seedbed for primary and secondary tillage.
Specially arranged disc gangs break hard soil and mix crop residue for improved soil condition and crop growth.
Improves soil aeration and moisture retention, supporting better root development and higher productivity.

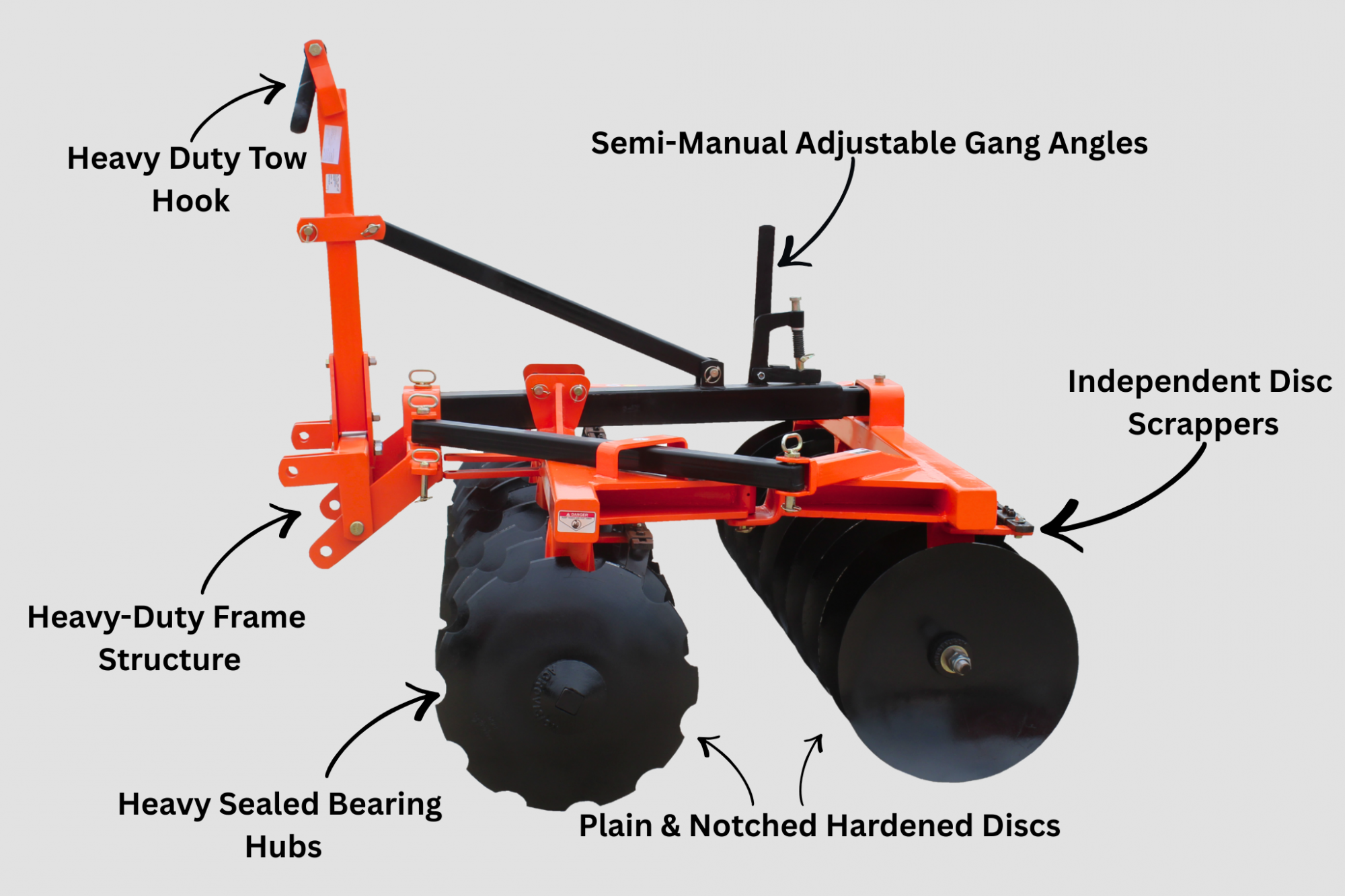

Heavy-duty reinforced frame ensures reliable performance and long service life in tough field conditions.
Adjustable disc angle and working depth allow effective operation in different soil types.
Can be used in both mounted and trailed configurations, suitable for CAT-II tractor linkage.
Optional transport wheels can be provided on request for easy movement between fields (not part of standard supply).

Horsepower Required

60 HP - 125 HP

Working Widths

2.1 m - 2.7 m

Hitch Types

Mounted & Trailed

Available Colors

Technical Specification

DESCRIPTION	A-CDH18/EU	A-CDH20/EU	A-CDH22/EU	A-CDH24/EU
NO. OF DISC	18	20	22	24
MAIN FRAME & GANG AXLE	100 mm Square Tube & 32 mm Solid Square Rod
DISC SIZE & TYPE	610 x 4.5 mm (24") Plain & Notched Disc / 660 x 6 mm (26") Plain & Notched Disc**
WORKING WIDTH	2130 mm (83.8")	2345 mm (92.3")	2560 mm (100.7")	2780 mm (109.4")
APPROX. WEIGHT	950 kg (2094 lbs)	1085 kg (2392 lbs)	1170 kg (2579 lbs)	1260 kg (2778 lbs)
TRACTOR REQUIRED	60 - 70 HP	70 - 80 HP	90 - 100 HP	105 - 125 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
