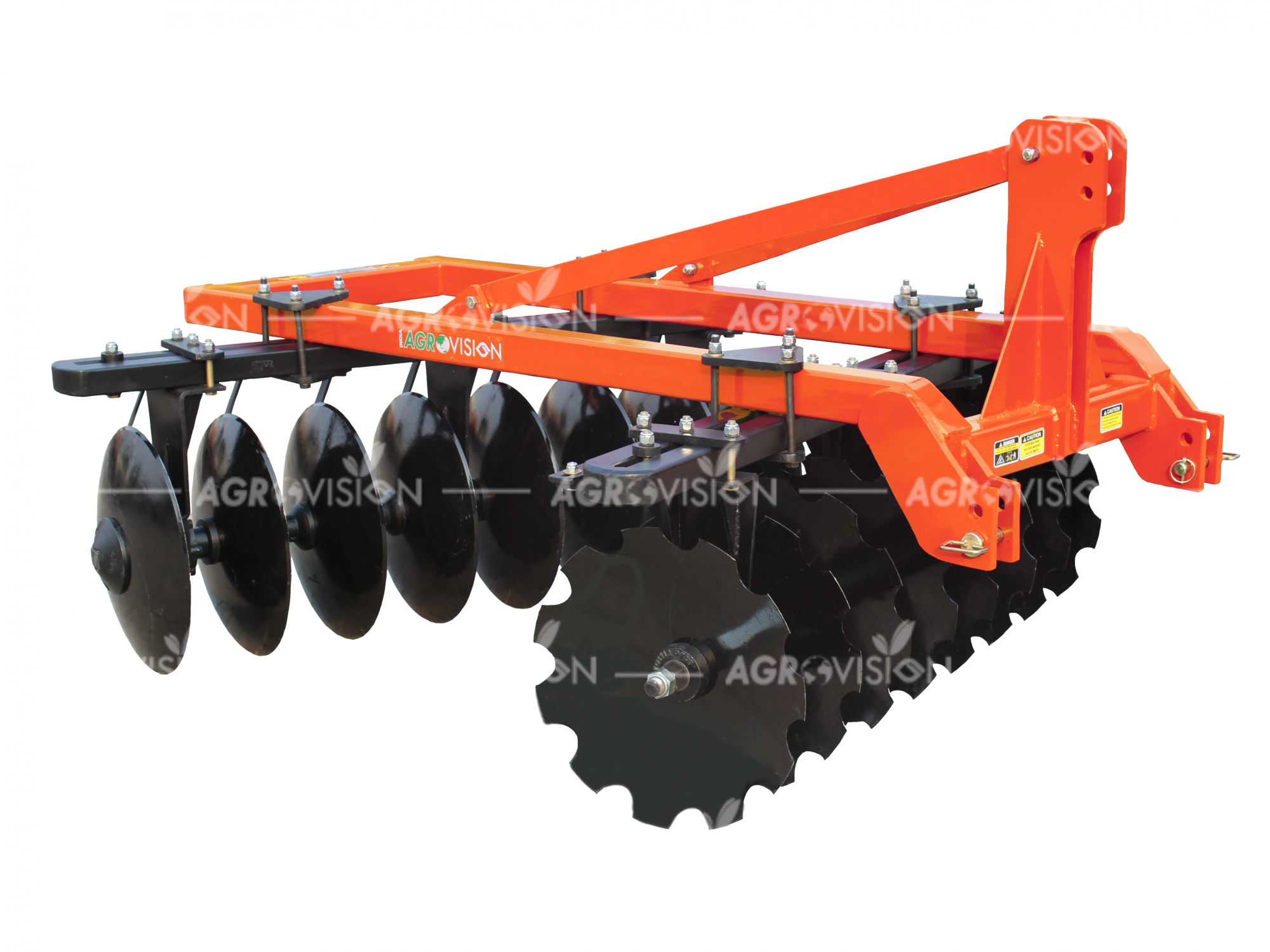

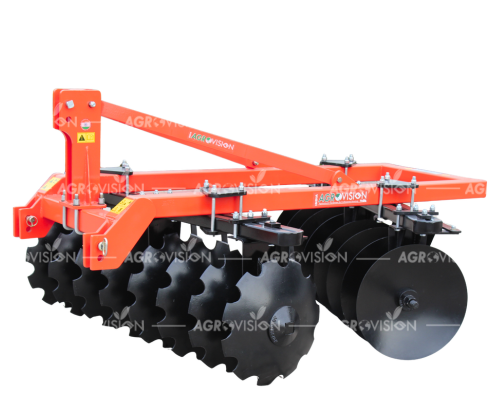

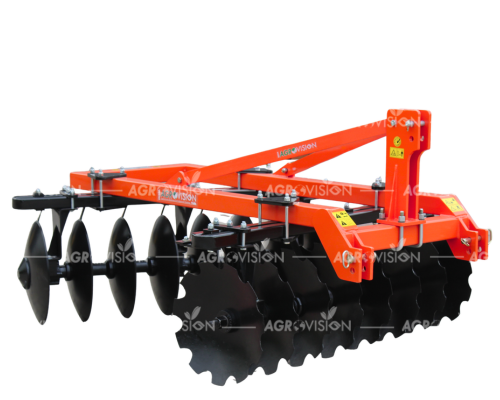

MOUNTED OFFSET DISC HARROW - HD SERIES

MOUNTED OFFSET DISC HARROW / HD SERIES is a heavy-duty tillage implement designed for efficient soil breaking, residue mixing, and seedbed preparation in tough field conditions.

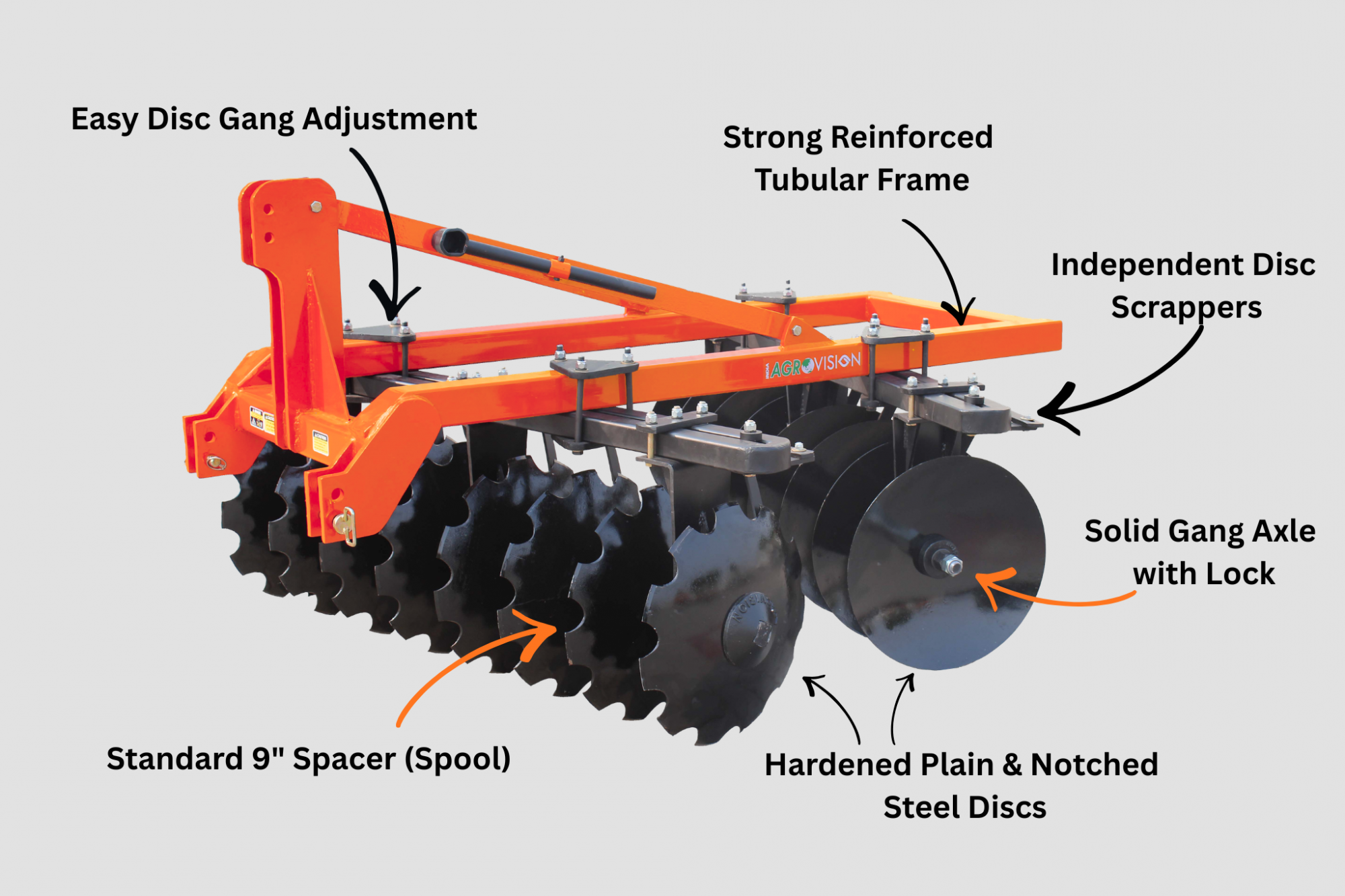

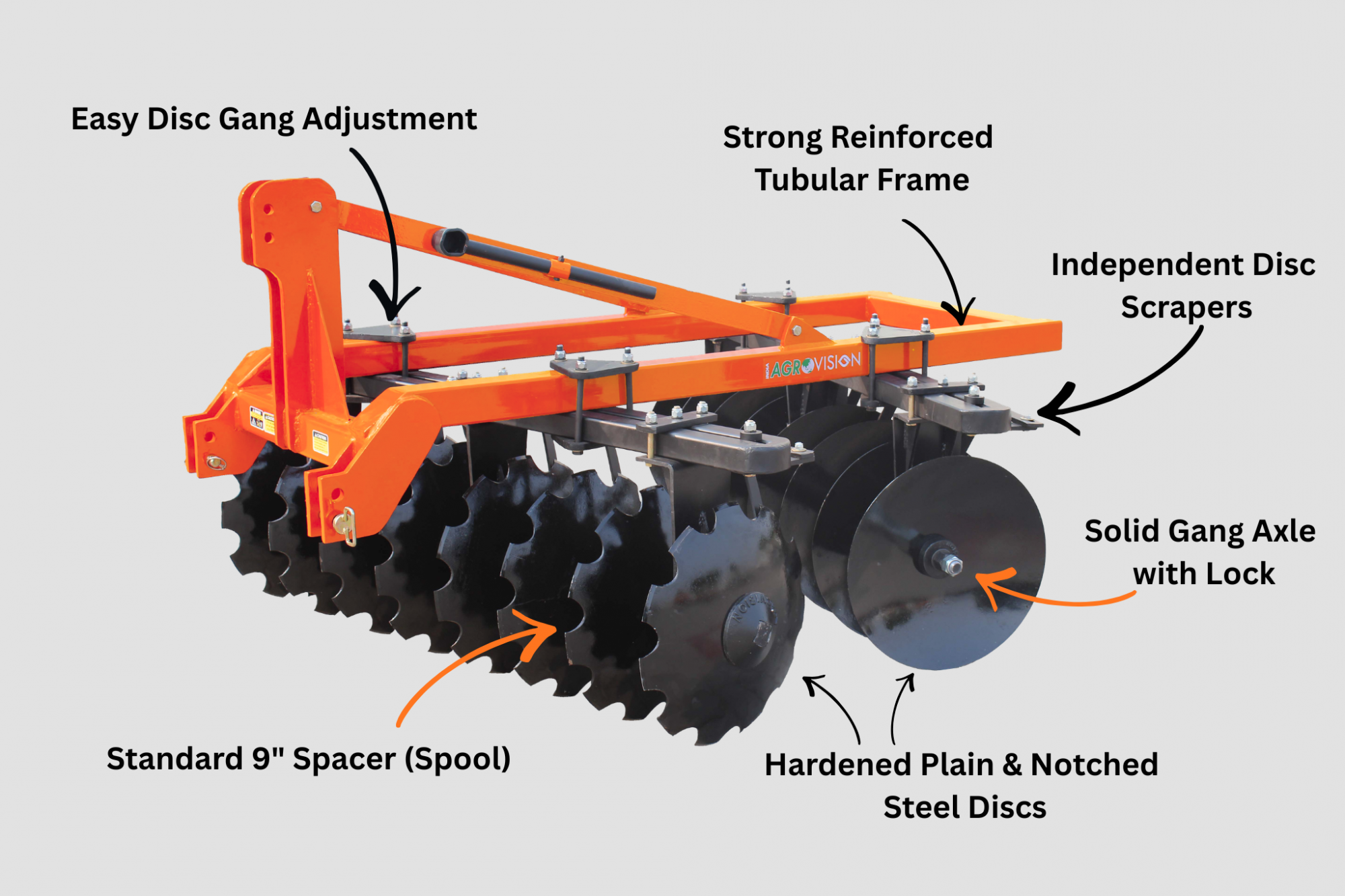

Offset disc gangs ensure deep soil penetration and effective clod breaking for uniform and well-prepared soil.
Strong heavy-duty tubular frame provides excellent durability and reliable performance during intensive field operations.
Adjustable front and rear disc gangs allow easy setting for different soil types and working depths.
High-quality hardened discs efficiently cut crop residues and mix organic matter for improved soil fertility.
Heavy-duty sealed bearing hubs ensure smooth, dust-free operation with low maintenance requirements.
Tractor-mounted design makes it compact, easy to transport, and suitable for primary and secondary tillage operations.

Horsepower Required

60 HP -110 HP

Working Widths

2.0 m - 2.9 m

Hitch Types

CAT-I / CAT-II

Available Colors

Technical Specification

DESCRIPTION	A-MODH18/HD	A-MODH20/HD	A-MODH22/HD	A-MODH24/HD	A-MODH26/HD
NO. OF DISC	18	20	22	24	26
MAIN FRAME & GANG AXLE	100 mm Square Tube & 32 mm Solid Square Rod
DISC SIZE & TYPE	560 x 4 mm (22") Plain & Notched Disc** / 610 x 4.5 mm (24") Plain & Notched Disc
WORKING WIDTH	2034 mm (80")	2260 mm (89")	2490 mm (98")	2718 mm (107")	2947 mm (116")
APPROX.WEIGHT	660 kg (1455 lbs)	700 kg (1543 lbs)	790 kg (1742 lbs)	850 kg (1874 lbs)	890 kg (1962 lbs)
RECOMMENDED TRACTOR	60 - 70 HP	70 - 80 HP	80 - 90 HP	90 - 100 HP	100 - 110 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
