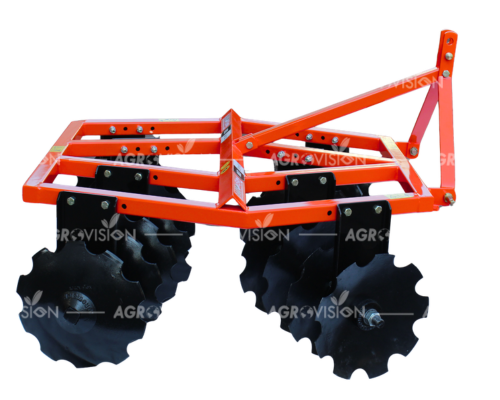

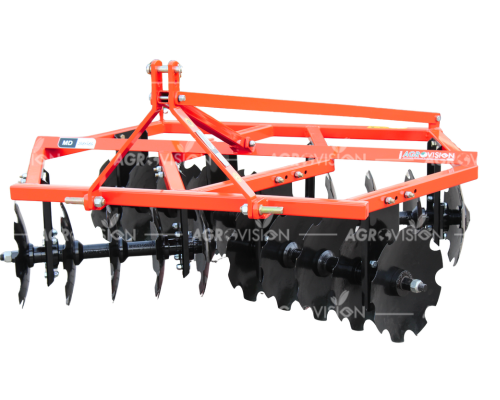

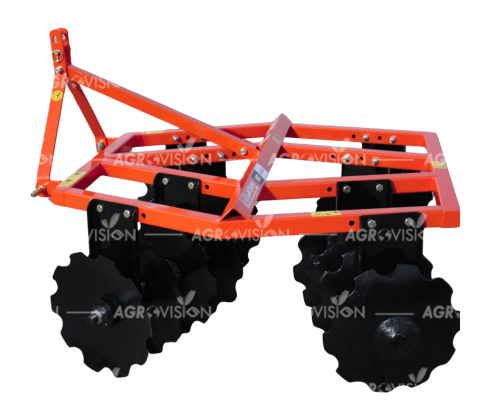

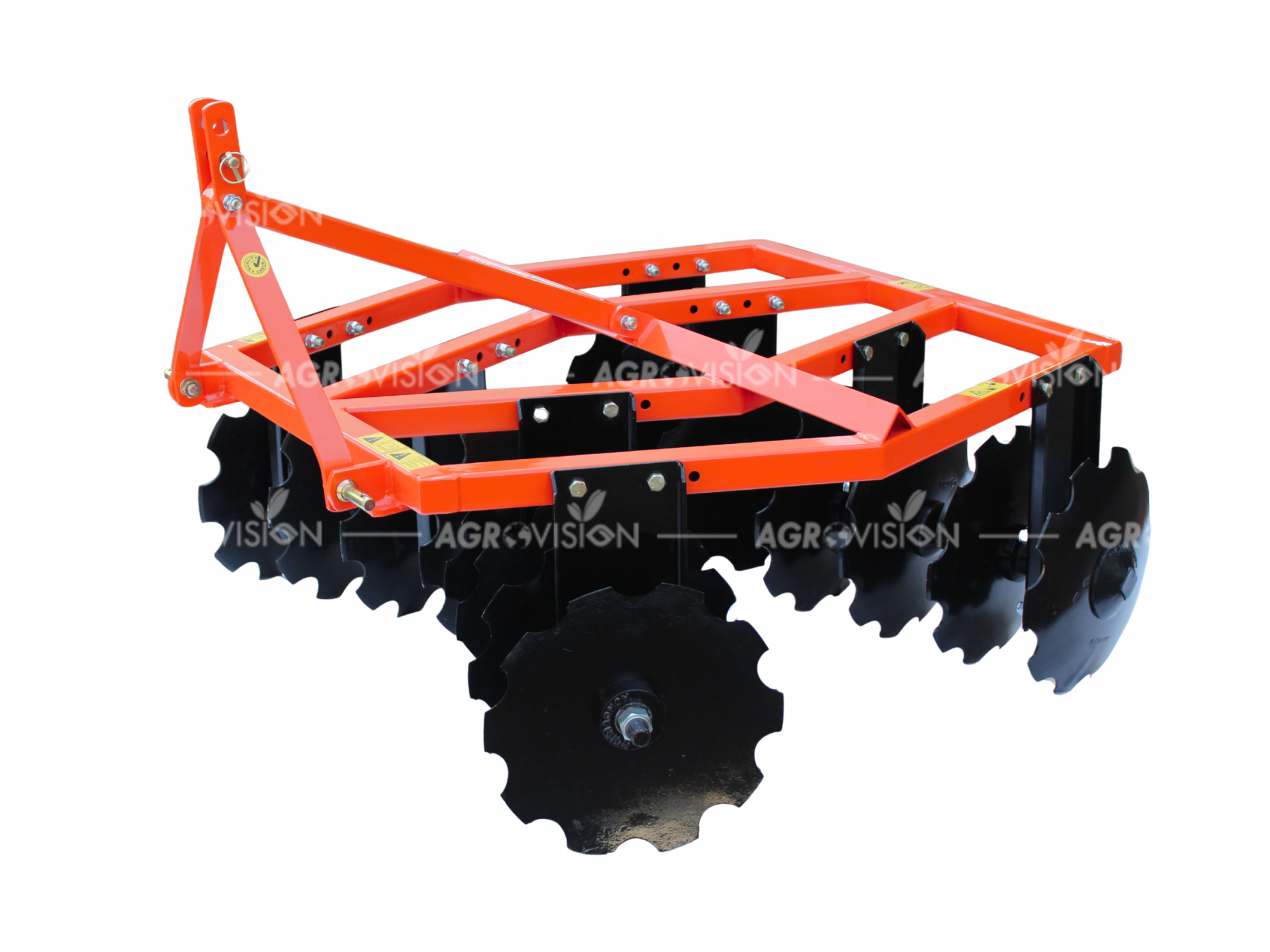

TANDEM DISC HARROW MD SERIES

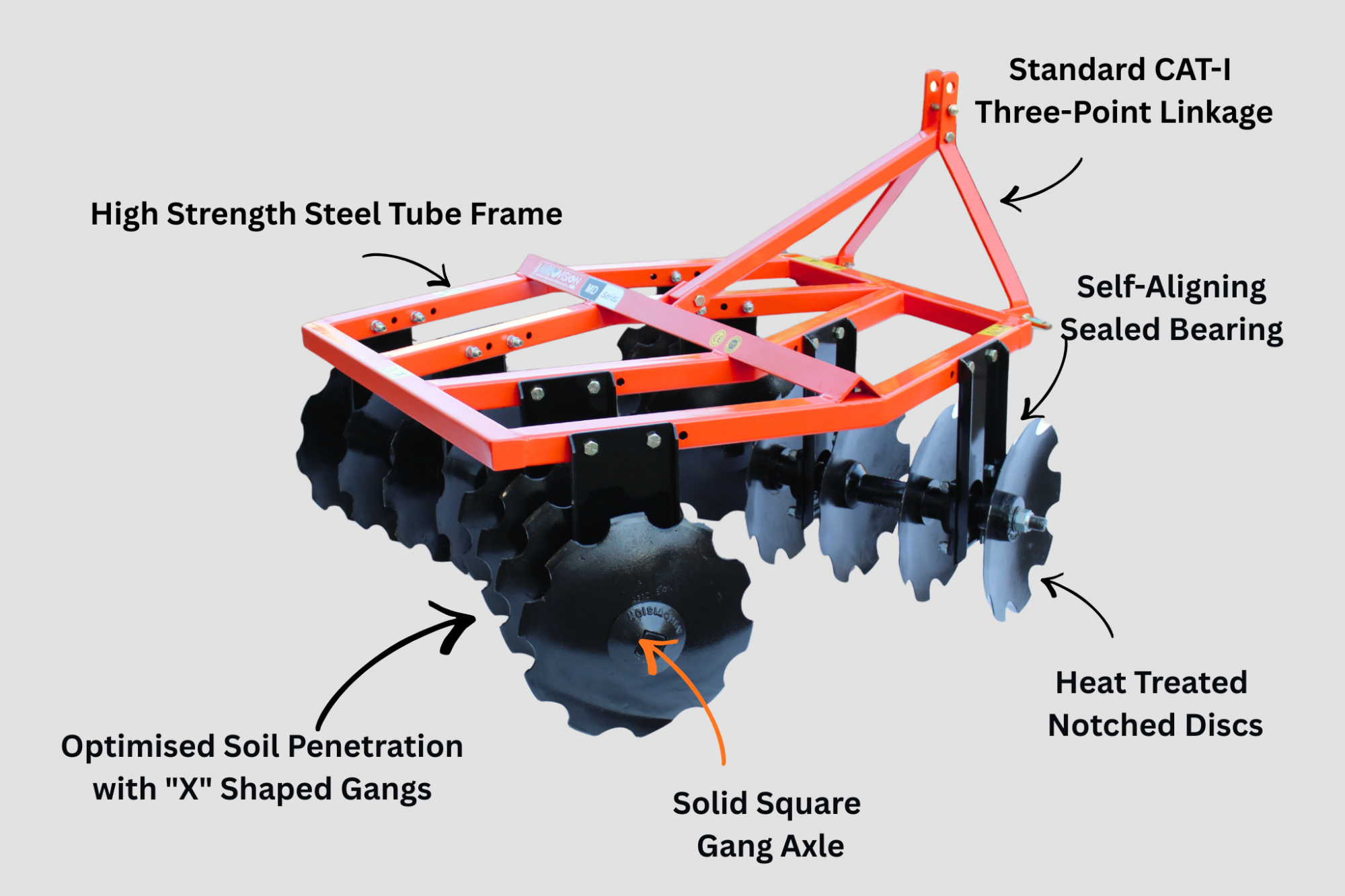

MD Series Tandem Disc Harrow is designed for efficient soil preparation, helping farmers create a fine and uniform seedbed before sowing.
Strong disc gangs with sharp blades effectively break soil clods and mix crop residue for better soil conditioning.
High-quality heat-treated discs ensure excellent soil penetration and long service life in regular field operations.
Durable steel tube frame provides strength and stability during tillage in light to medium soil conditions.
Optimized disc gang arrangement improves soil cutting and mixing for uniform field finishing.
Sealed and grease-able bearing units allow smooth disc rotation and reduce maintenance requirements.
Suitable for small and medium tractors, making it ideal for seedbed preparation, residue incorporation, and field leveling.

Technical Specification

TANDEM DISC HARROW MD SERIES

MODEL	A-TDH12/MD	A-TDH16/MD	A-TDH20/MD	A-TDH24/MD
MAIN FRAME	60 mm Square Tube	60 mm Square Tube	60 mm Square Tube	60 mm Square Tube
NO. OF DISCS	12	16	20	24
DISC TYPE	Front & Rear Gang with Notched Disc	Front & Rear Gang with Notched Disc	Front & Rear Gang with Notched Disc	Front & Rear Gang with Notched Disc
DISC SIZE	457 mm x 3 mm	457 mm x 3 mm	457 mm x 3 mm	457 mm x 3 mm
GANG ANGLE ADJUSTMENT	Manual	Manual	Manual	Manual
LINKAGE TYPE	CAT-I	CAT-I	CAT-I	CAT-I
DISC SPACING	190 mm (7.5 Inch)	190 mm (7.5 Inch)	190 mm (7.5 Inch)	190 mm (7.5 Inch)
WORKING WIDTH	1210 mm	1540 mm	1870 mm	2200 mm
APPROX. WEIGHT	245 Kg	295 Kg.	345 Kg.	395 Kg
TRACTOR POWER	15-35 HP	25-45 HP	35-55 HP	45-65 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
