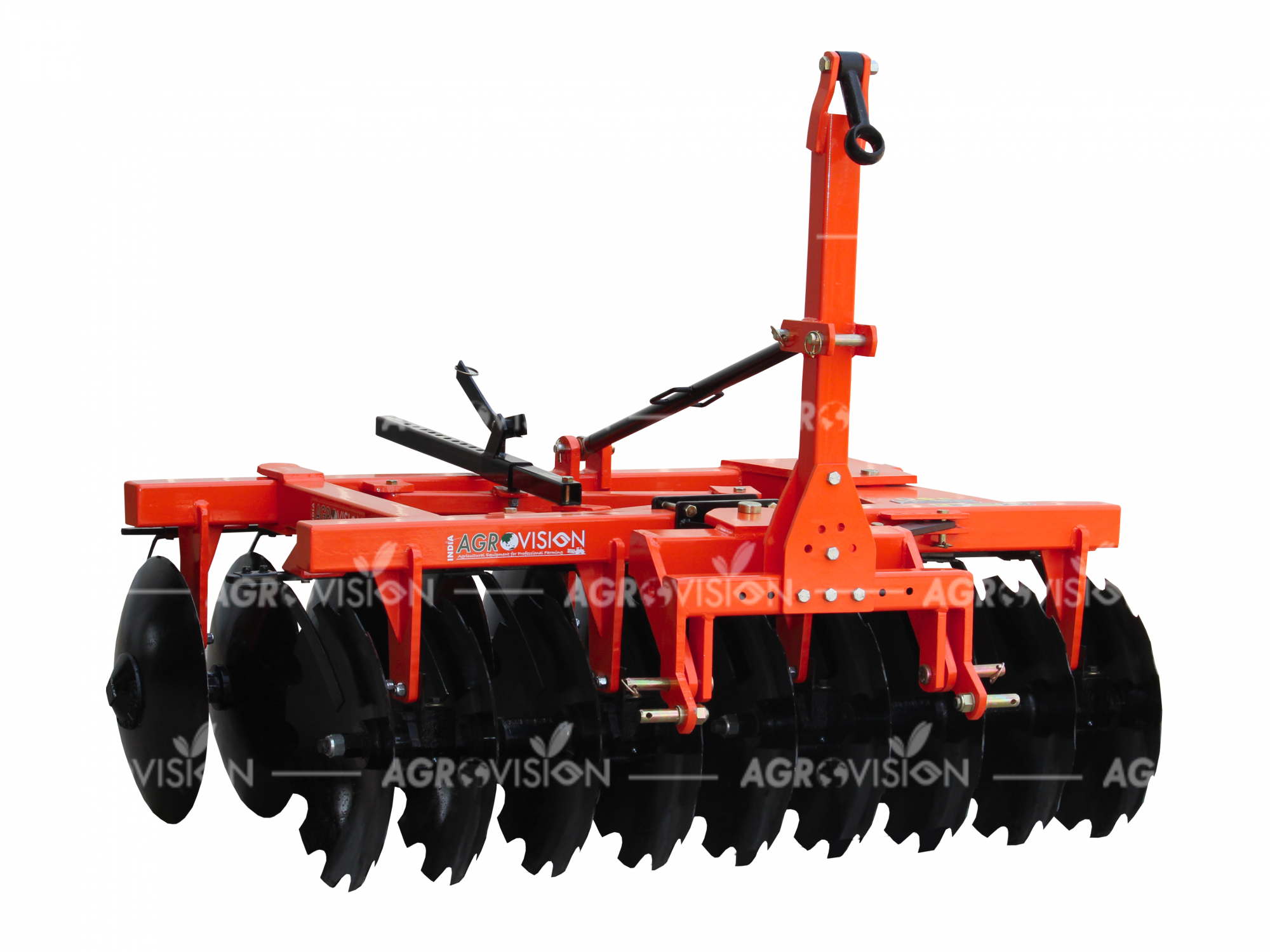

COMPACT DISC HARROW - HD SERIES

Compact Disc Harrow is designed for efficient soil preparation, creating a fine and uniform seedbed for both primary and secondary tillage operations.
Specially arranged disc gangs break hard soil and loosen compacted layers for improved root development and crop growth.
Enhances soil aeration and moisture retention, helping maintain better soil structure and field productivity.
Effectively mixes crop residue, weeds, and organic matter into the soil for improved fertility and cleaner fields.

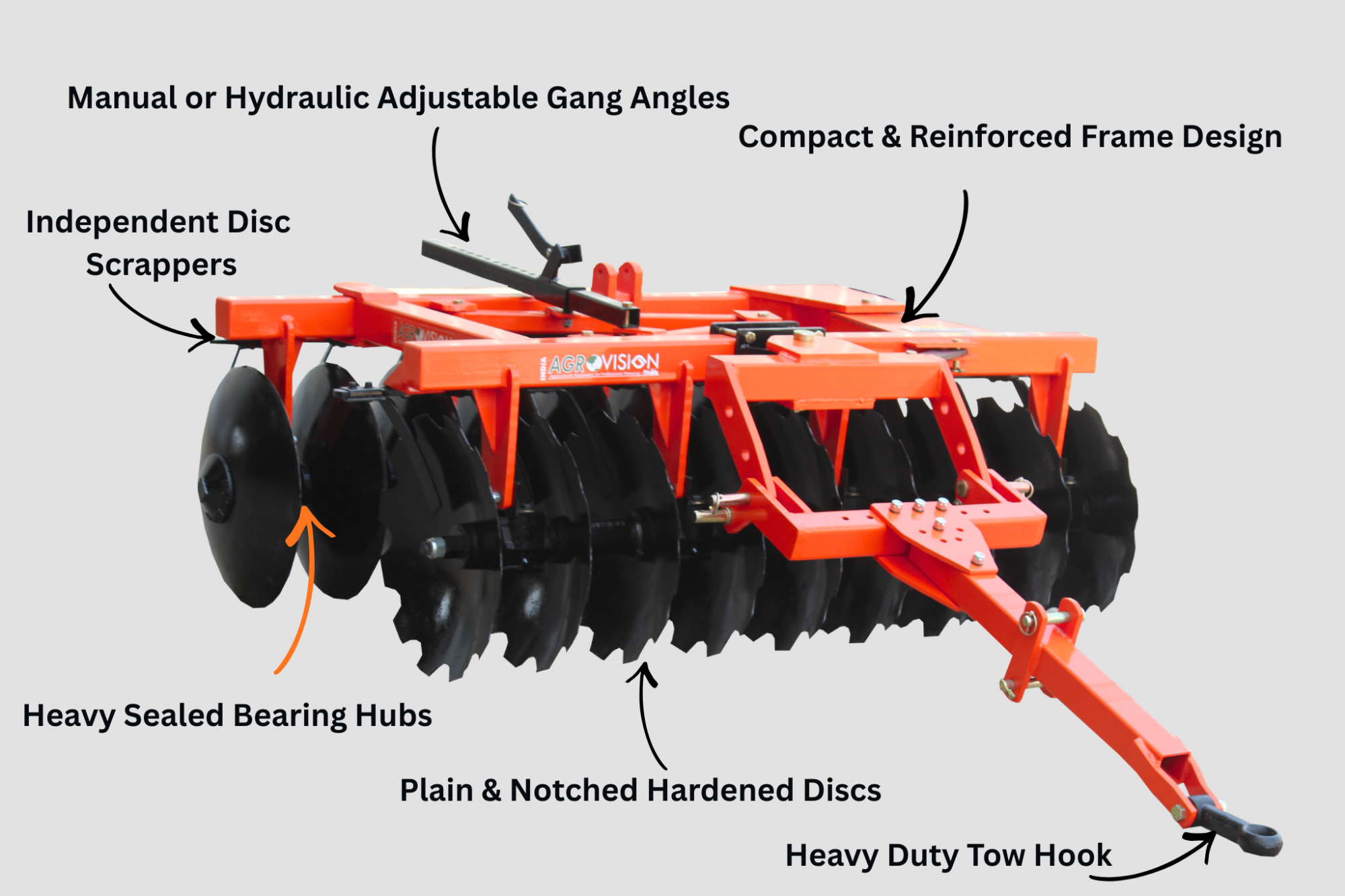

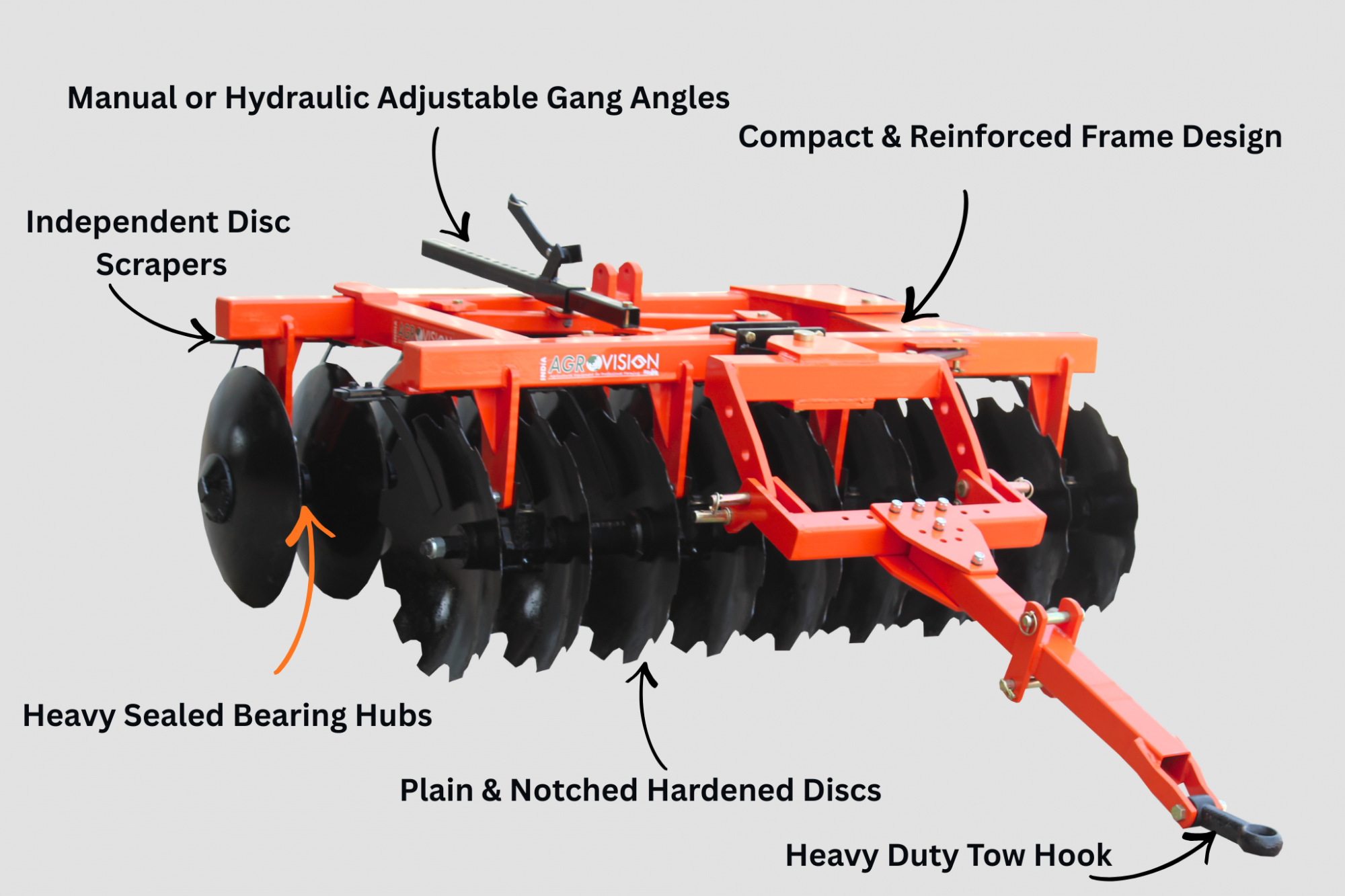

Heavy-duty reinforced steel frame ensures strength and durability under tough working conditions.
Adjustable disc angles and working depth provide flexibility for different s oil types and field requirements.
Grease-lubricated bearing hubs and simple construction ensure smooth operation with low maintenance.

Horsepower Required

50 HP - 125 HP

Working Widths

1.9 m - 2.7 m

Hitch Types

Mounted & Trailed

Available Colors

Technical Specification

DESCRIPTION	A-CDH16	A-CDH18	A-CDH20	A-CDH22	A-CDH24
NO. OF DISC	16	18	20	22	24
MAIN FRAME & GANG AXLE	100 mm Square Tube & 32 mm Solid Square Rod
DISC SIZE & TYPE	610 x 4.5 mm (24") Plain & Notched Disc / 660 x 6 mm (26") Plain & Notched Disc**
WORKING WIDTH	1910 mm (75.1")	2130 mm (83.8")	2345 mm (92.3")	2560 mm (100.7")	2780 mm (109.4")
APPROX. WEIGHT	765 kg (1687 lbs)	880 kg (1940 lbs)	945 kg (2083 lbs)	1015 kg (2238 lbs)	1090 kg (2403 lbs)
TRACTOR REQUIRED	50 - 60 HP	60 - 70 HP	70 - 80 HP	90 - 100 HP	105 - 125 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
