TANDEM DISC HARROW - ULTRA HD SERIES

Ultra HD Series Tandem Disc Harrow is designed for efficient seedbed preparation, soil loosening, and residue incorporation in demanding field conditions.

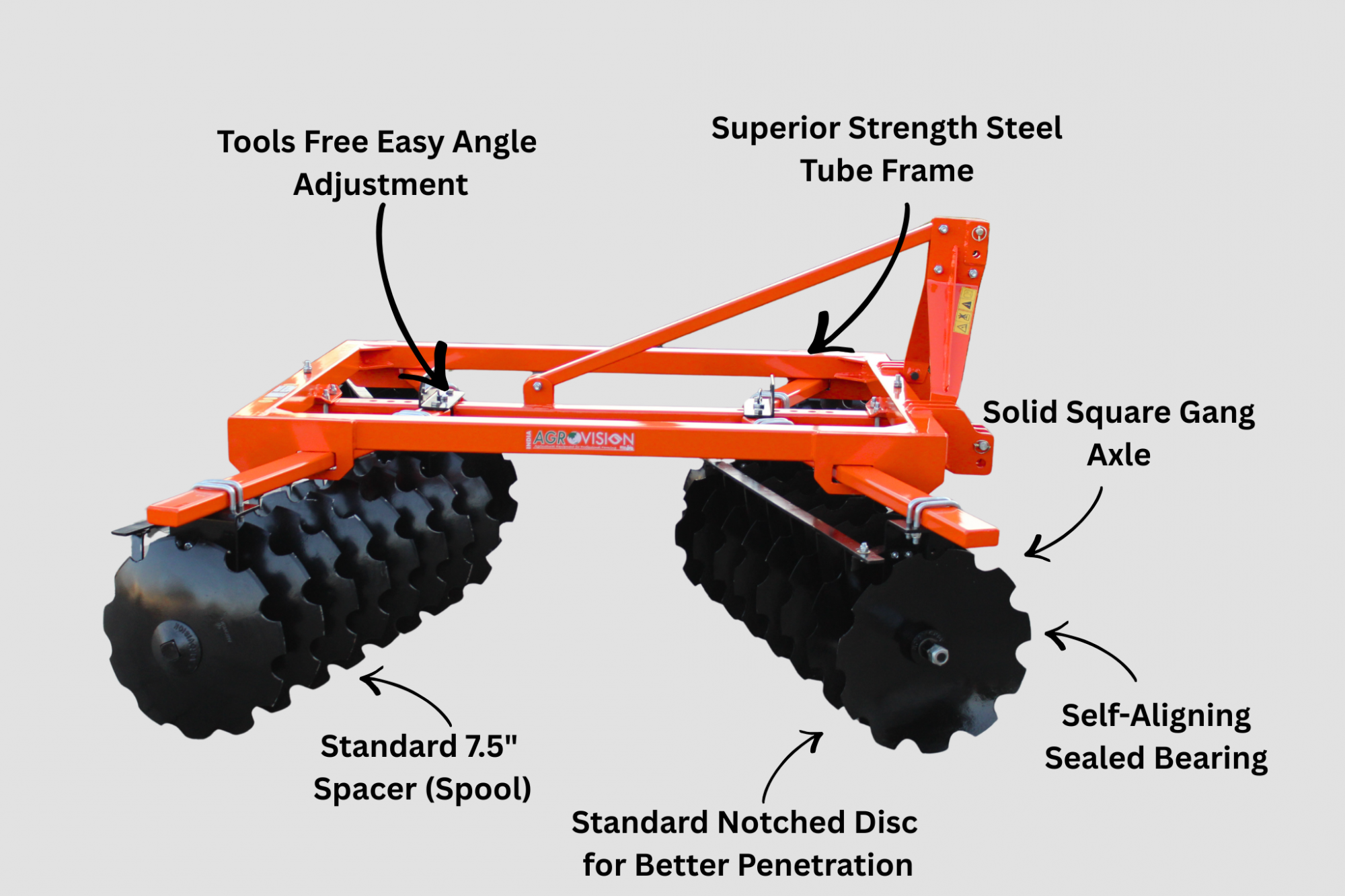

Heavy-duty steel frame and reinforced gang assemblies ensure long service life and reliable performance under high working loads.
Notched or combination discs provide deep soil penetration and uniform tillage even in hard ground conditions.
Adjustable disc gang angles allow operators to control tillage aggressiveness and achieve the desired seedbed finish.
High-quality bearing hangers and gang axles withstand heavy torque and ensure smooth and durable operation.
Heavy downforce and balanced tandem gang design improve soil mixing and produce an even field finish in fewer passes.
Suitable for medium to high HP tractors with three-point hitch compatibility for easy attachment and operation.

Horsepower Required

55 HP - 100 HP

Working Widths

2.4 m - 3.7 m

Hitch Types

CAT-I / CAT-II

Available Colors

Technical Specification

DESCRIPTION	A-TDH24/UHD	A-TDH28/UHD	A-TDH32/UHD
NO. OF DISC	24	28	32
MAIN FRAME & GANG FRAME	90 mm Square Tube & 96 x 48 mm Rectangular Tube
DISC SIZE & TYPE	510 x 3.5 mm (20") Notched Disc / 560 x 4 mm (22") Notched Disc**
WORKING WIDTH	2439 mm (96")	2871 mm (113")	3302 mm (130")
APPROX. WEIGHT	630 kg (1389 lbs)	735 kg (1620 lbs)	840 kg (1852 lbs)
RECOMMENDED TRACTOR	80 - 95 HP	95 - 110 HP	110 - 125 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
