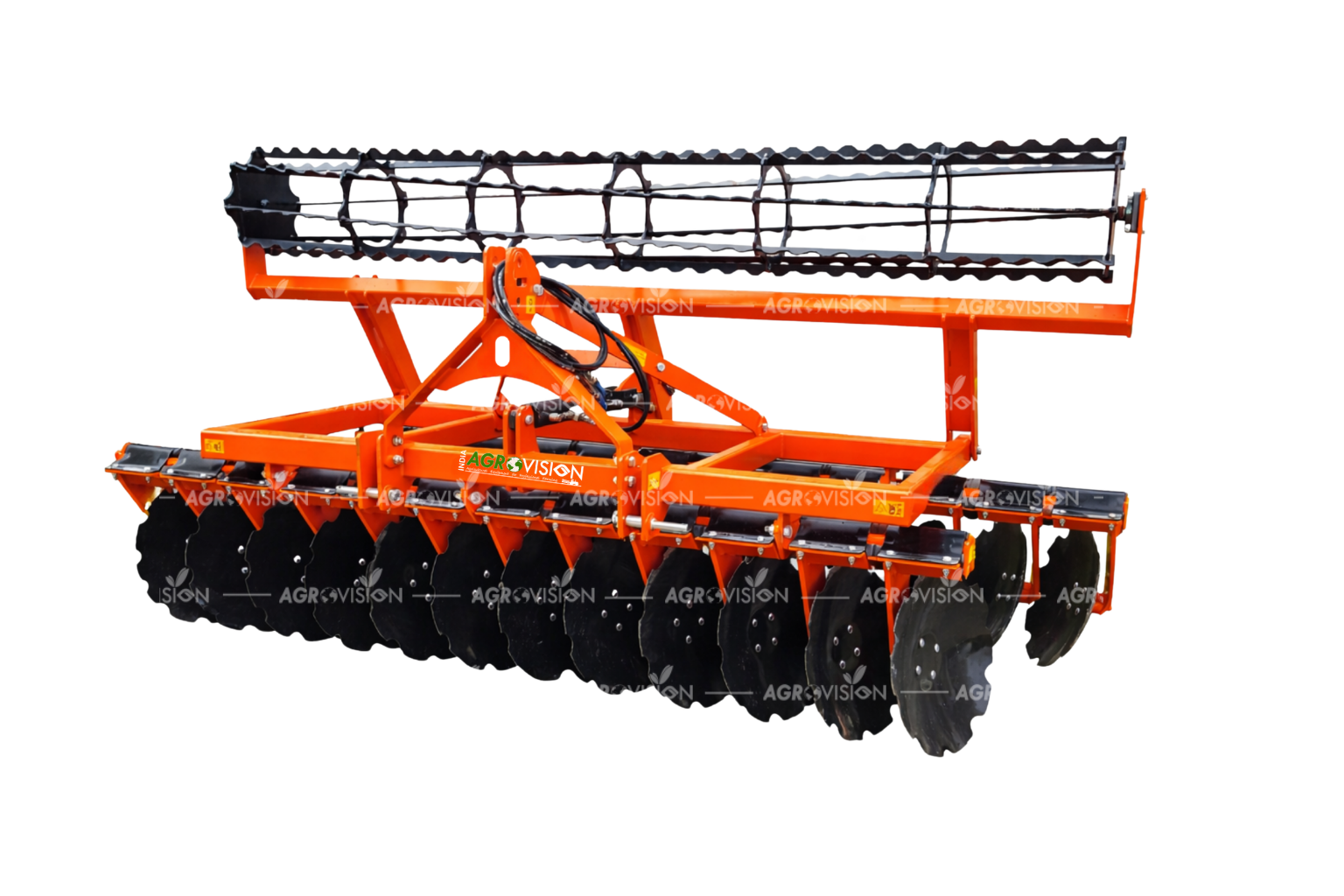

HIGH SPEED DISC HARROW - HD SERIES

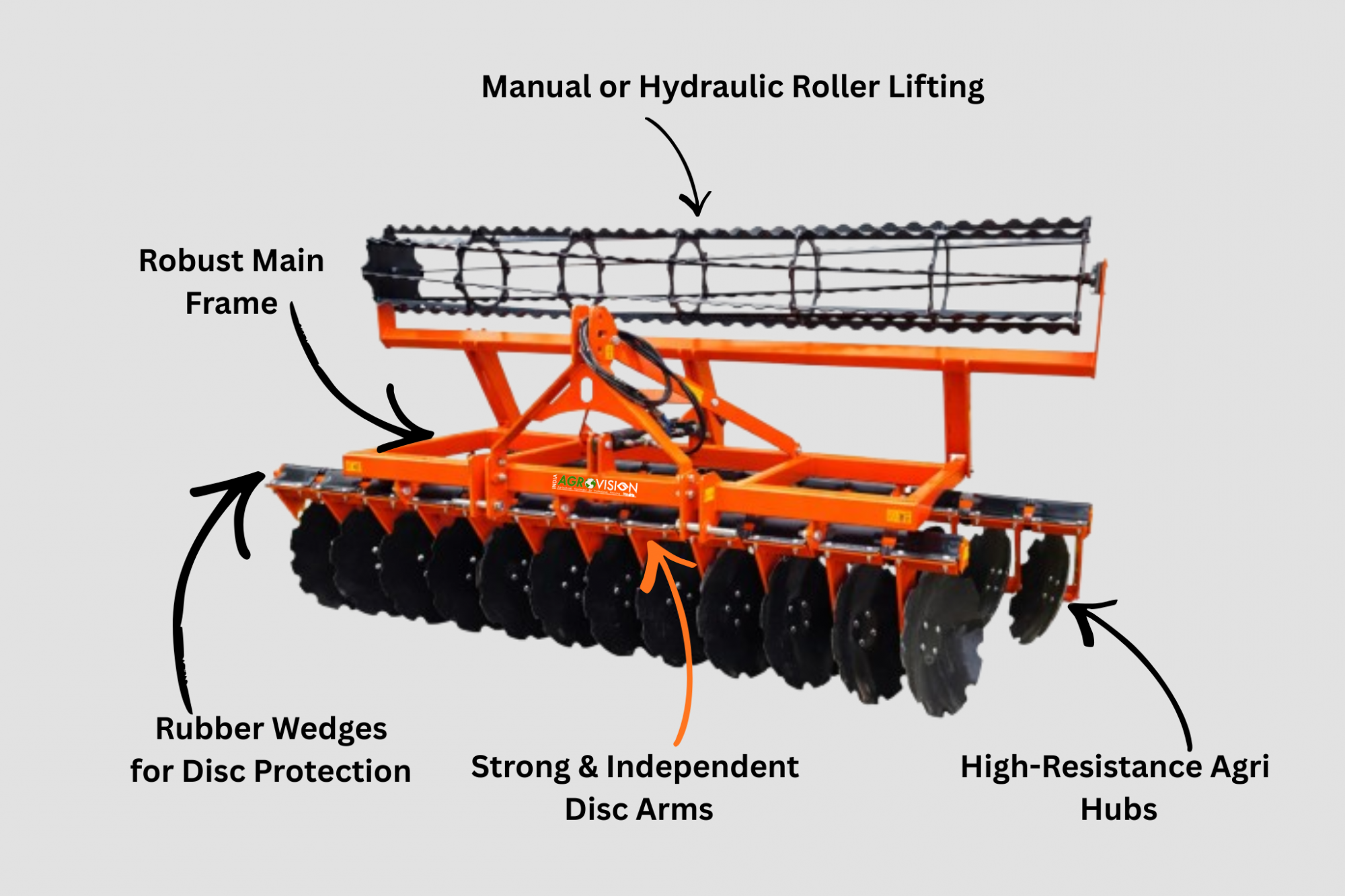

High Speed Disc Harrow is a high-performance agricultural implement designed for fast, uniform soil preparation and superior field finishing before sowing.
Equipped with heavy-duty notched disc blades that efficiently cut crop residues, break hard clods, and thoroughly mix soil for ideal seedbed preparation.
Engineered for high-speed operation, allowing wider area coverage while reducing field time and fuel consumption.
Sharp, high-quality discs ensure deep soil penetration, making it suitable for hard, sticky, dry, and varied soil conditions.
Built with a robust heavy-duty frame and precision bearings for long service life and reliable performance in demanding farming operations.
Improves soil aeration, moisture retention, and residue incorporation to promote better germination and healthy crop growth.

Horsepower Required

50 HP - 110 HP

Working Widths

2.0 m - 3.5 m

Hitch Types

CAT-II

Available Colors

Technical Specification

DESCRIPTION	A-HSH16/HD	A-HSH20/HD	A-HSH24/HD	A-HSH28/HD
NO. OF DISC	16	20	24	28
MAIN FRAME	100 mm Square Tube
DISC SIZE & TYPE	510 x 3.5 mm (20 Inch) Notched Disc / 560 x 4 mm (22 Inch) Notched Disc**
WORKING WIDTH	2000 mm (78.75 Inches)	2500 mm (98.45 Inches)	3000 mm (118.15 Inches)	3500 mm (137.80 Inches)
TRACTOR REQUIRED	50 HP - 65 HP	60 HP - 95 HP	75 HP - 100 HP	85 HP - 110 HP
APPROX WEIGHT	890 kg (1962 lbs)	1095 kg (2414 lbs)	1295 kg (2855 lbs)	1500 kg (3307 lbs)

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
