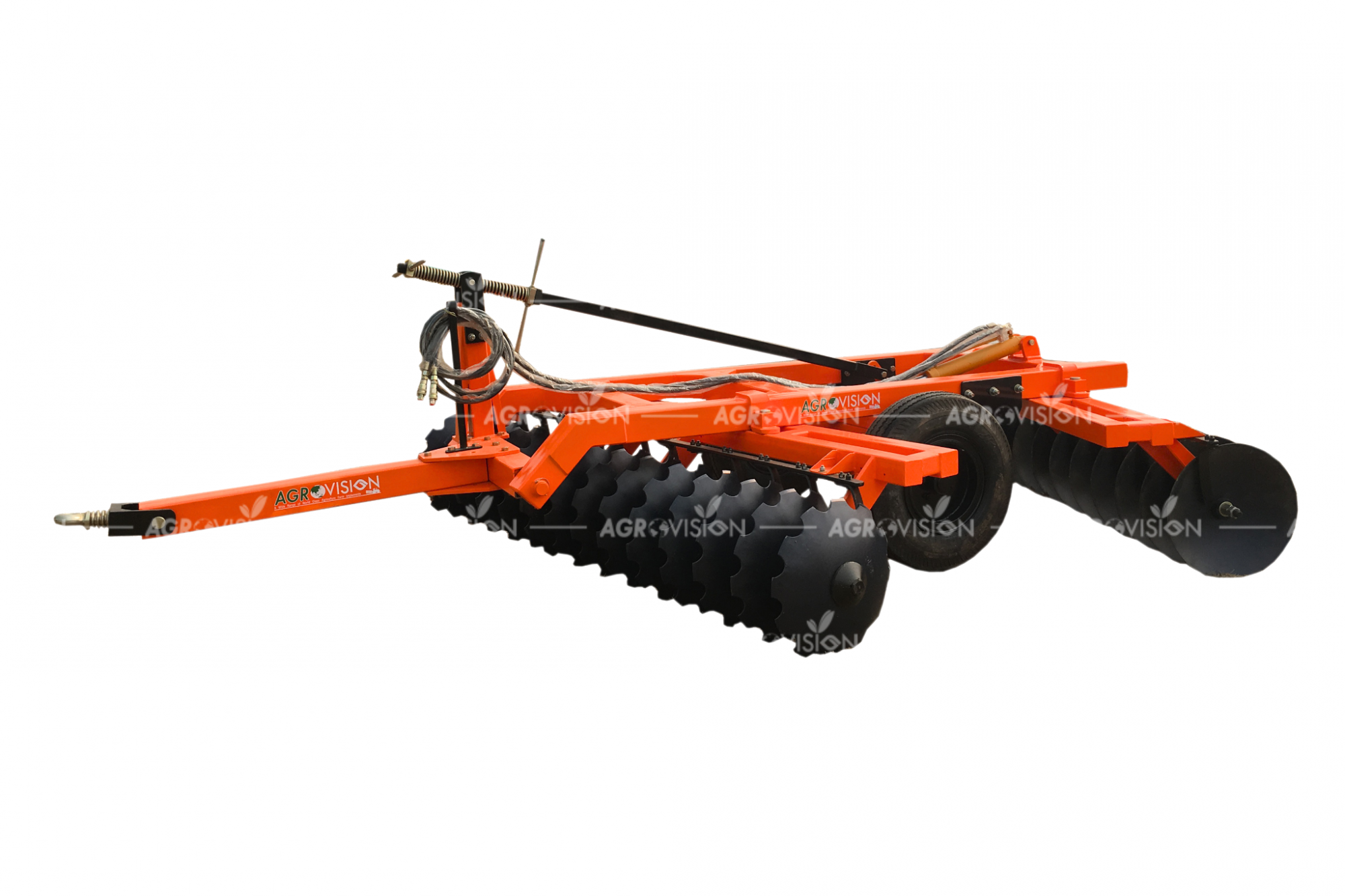

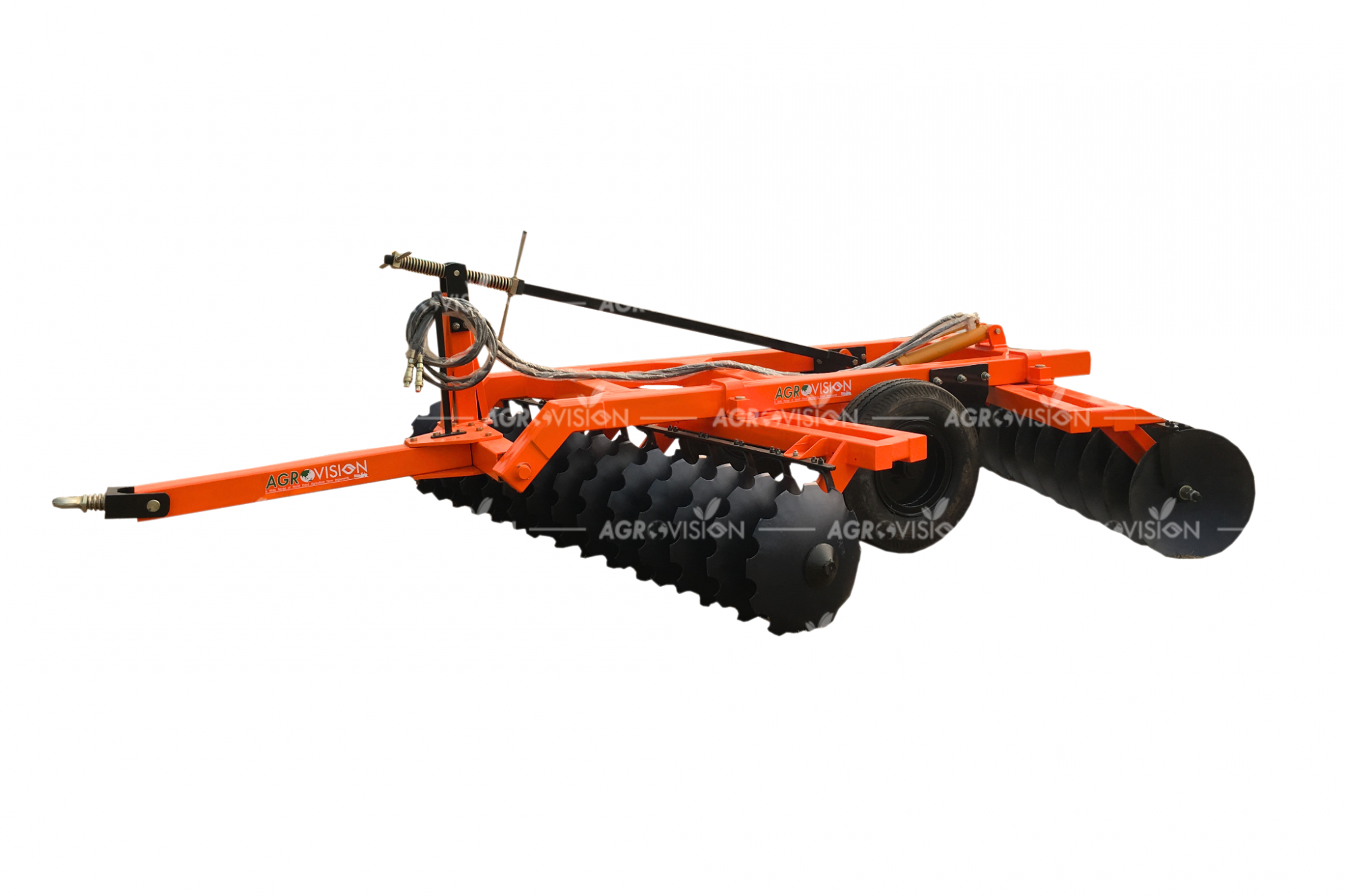

HYDRAULIC OFFSET DISC HARROW - ULTRA HD SERIES

The Hydraulic Offset Disc Harrow is an advanced tillage implement designed for effective soil preparation and residue management across varied field conditions.
It's hydraulically or manually adjustable offset frame allows working width changes for precise depth control and improved field finish.
Equipped with strong, sharp disc blades, it cuts, mixes, and breaks soil clods while incorporating crop residue to create a uniform seedbed.

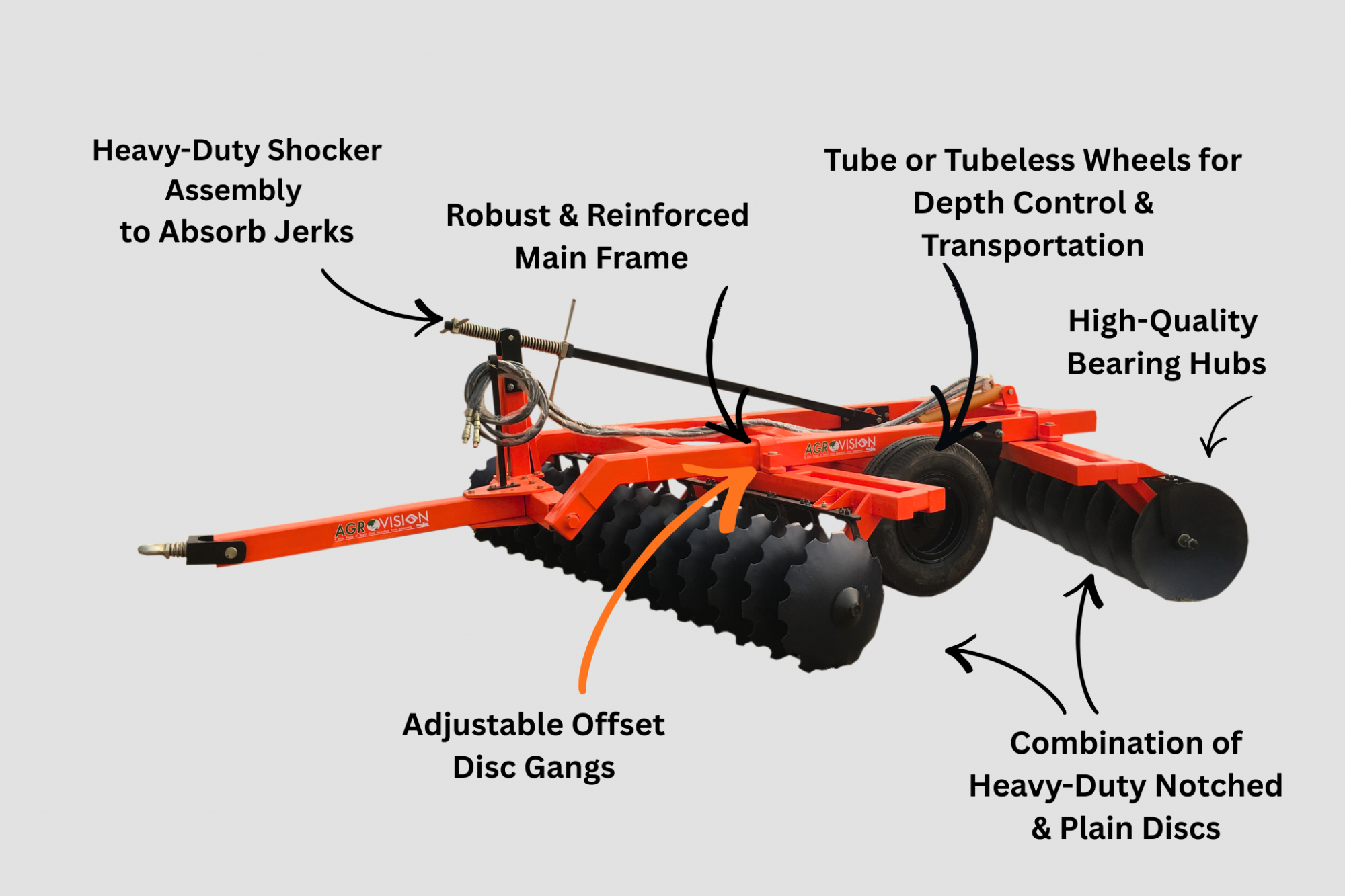

Heavy-duty construction with robust bearings and reinforced frame ensures reliable performance and long service life in demanding agricultural use.
Excellent for leveling soil, managing trash, and preparing land after harvest to promote better soil aeration and moisture retention.
Suitable for a wide range of tractors and cropping patterns, this disc harrow boosts productivity while lowering overall tillage costs.

Horsepower Required

75 HP - 180 HP

Working Widths

2.3 m - 3.9 m

Hitch Types

Trailed

Available Colors

Technical Specification

DESCRIPTION	A-HDH20/UHD	A-HDH24/UHD	A-HDH28/UHD	A-HDH32/UHD	A-HDH36/UHD
NO. OF DISC	20	24	28	32	36
MAIN FRAME	132 mm Square Tube and 100 mm Square Tube
DISC SIZE & TYPE	610 x 4.5 mm (24") Plain & Notched Disc** / 660 x 6 mm (26") Plain & Notched Disc
WORKING WIDTH	2300 mm (90.5")	2700 mm (106.3")	3100 mm (122")	3500 mm (137.8")	3900 mm (153.5")
APPROX. WEIGHT	1630 kg (3594 lbs)	1850 kg (4079 lbs)	2050 kg (4519 lbs)	2210 kg (4872 lbs)	2370 kg (5225 lbs)
RECOMMENDED TRACTOR	75 - 85 HP	95 - 105 HP	110 - 120 HP	140 - 150 HP	170 - 180 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
