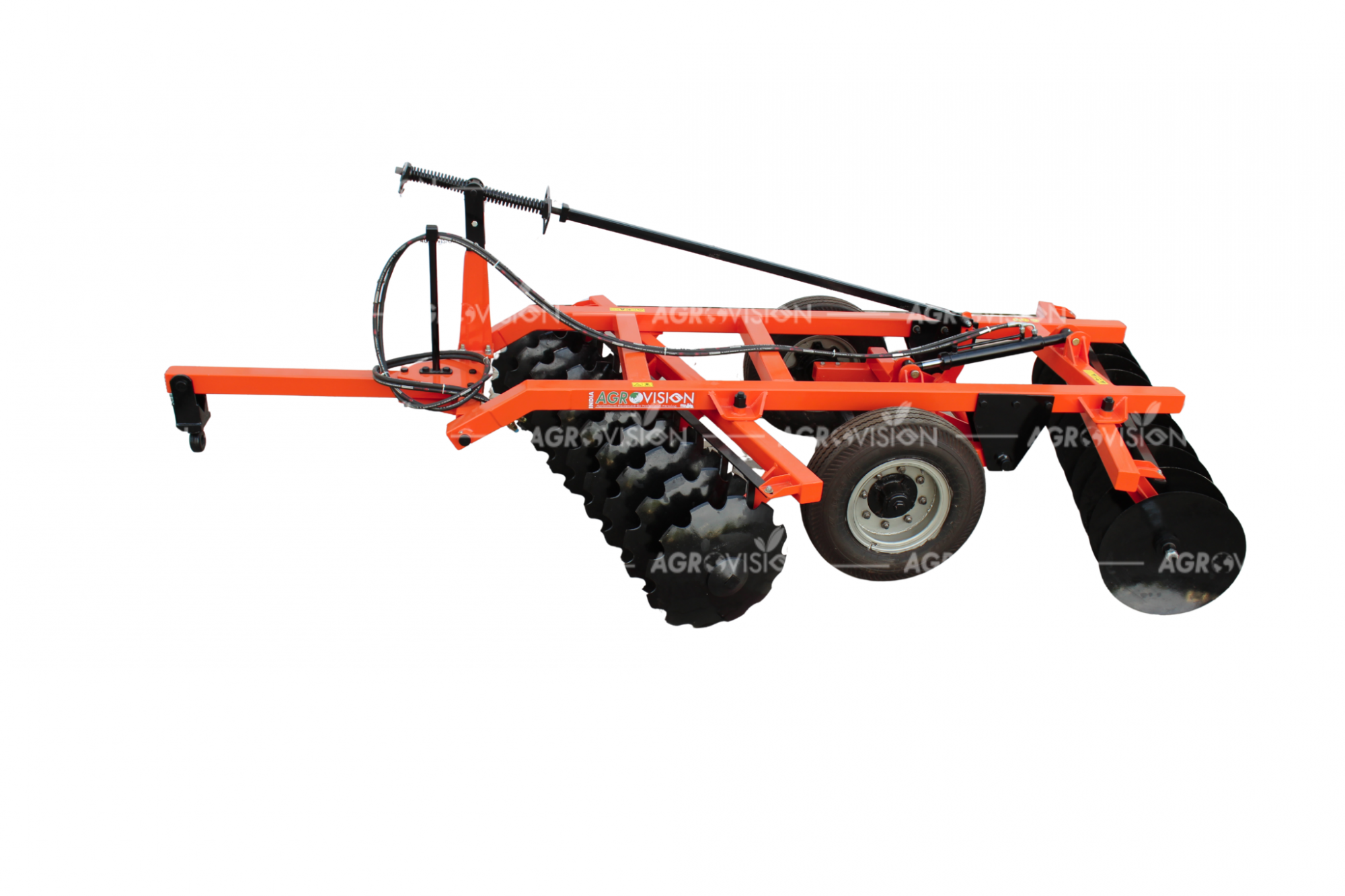

HYDRAULIC OFFSET DISC HARROW - HD SERIES

HYDRAULIC OFFSET DISC HARROW / HD SERIES is a durable farm implement designed for deep tillage and efficient soil conditioning before planting.
The offset disc arrangement ensures better soil inversion and uniform mixing of crop residues for improved field preparation.
Heavy-duty steel discs penetrate tough soil easily and help in breaking compact layers for better root development.
Strong frame construction with quality components provides stable performance even under continuous field operations.

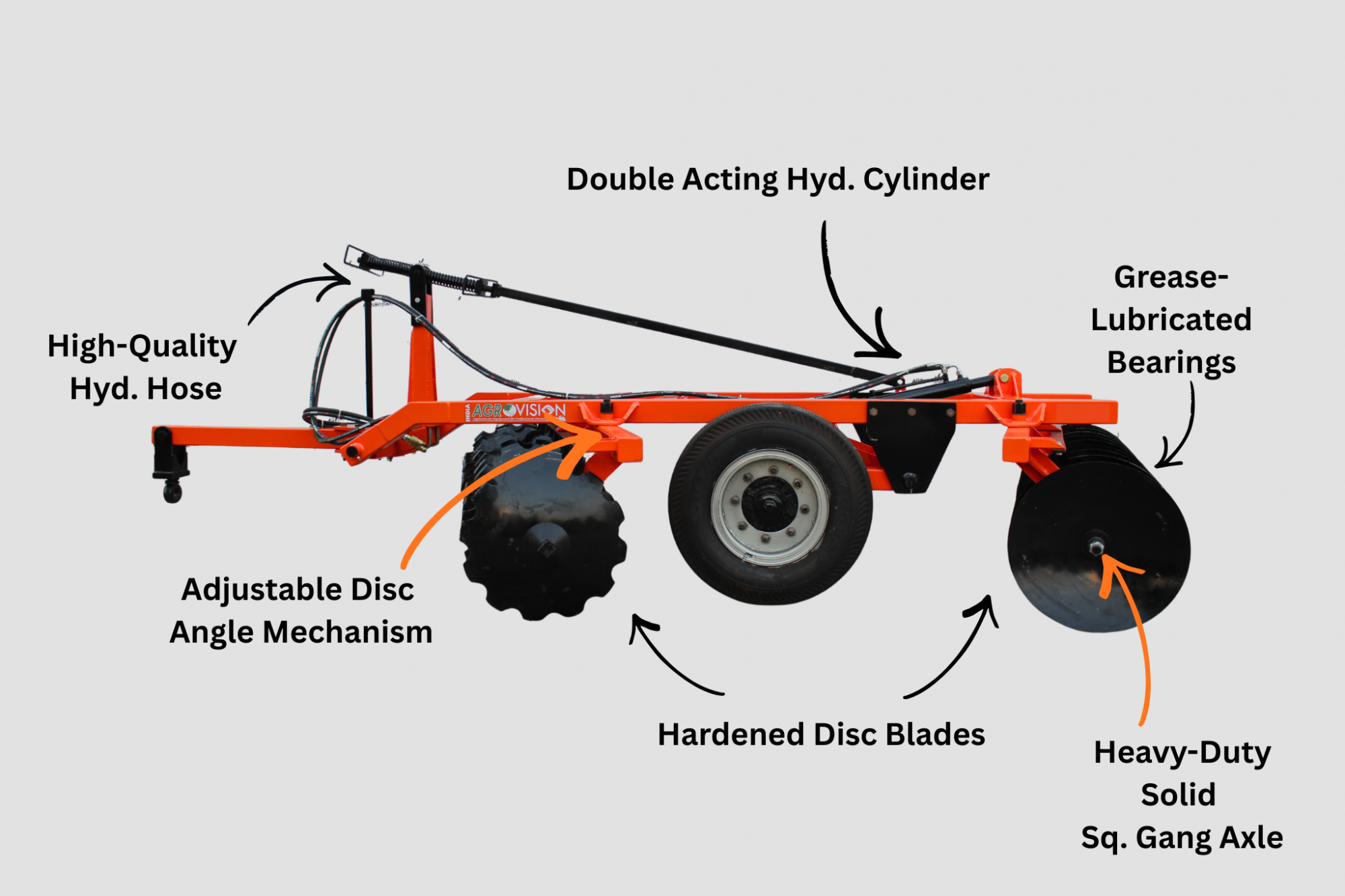

Hydraulic control system enables easy transport position adjustment and smooth maneuvering in the field.
Helps improve soil structure by loosening hard ground and enhancing moisture absorption for better crop growth.
Ideal for primary tillage, stubble incorporation, and land leveling in different soil conditions and farming practices.

Horsepower Required

45 - 100 HP

Working Widths

1.9 m - 2.7 m

Hitch Types

Trailed

Available Colors

Technical Specification

DESCRIPTION	A-HDH16/HD	A-HDH18/HD	A-HDH20/HD	A-HDH22/HD	A-HDH24/HD
NO. OF DISC	16	18	20	22	24
MAIN FRAME & GANG AXLE	100 mm Square Tube & 90 mm Square Tube
DISC SIZE & TYPE	560 x 4 mm (22") Plain & Notched Disc** / 610 x 4.5 mm (24") Plain & Notched Disc
WORKING WIDTH	1900 mm (74.8")	2100 mm (82.6")	2300 mm (90.5")	2500 mm (98.4")	2700 mm (106.2")
APPROX.WEIGHT	1170 kg (2579 lbs)	1365 kg (3009 lbs)	1565 kg (3450 lbs)	1775 kg (3913 lbs)	1990 kg (4387 lbs)
RECOMMENDED TRACTOR	45 - 55 HP	55 - 65 HP	65 - 75 HP	80 - 90 HP	90 - 100 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
