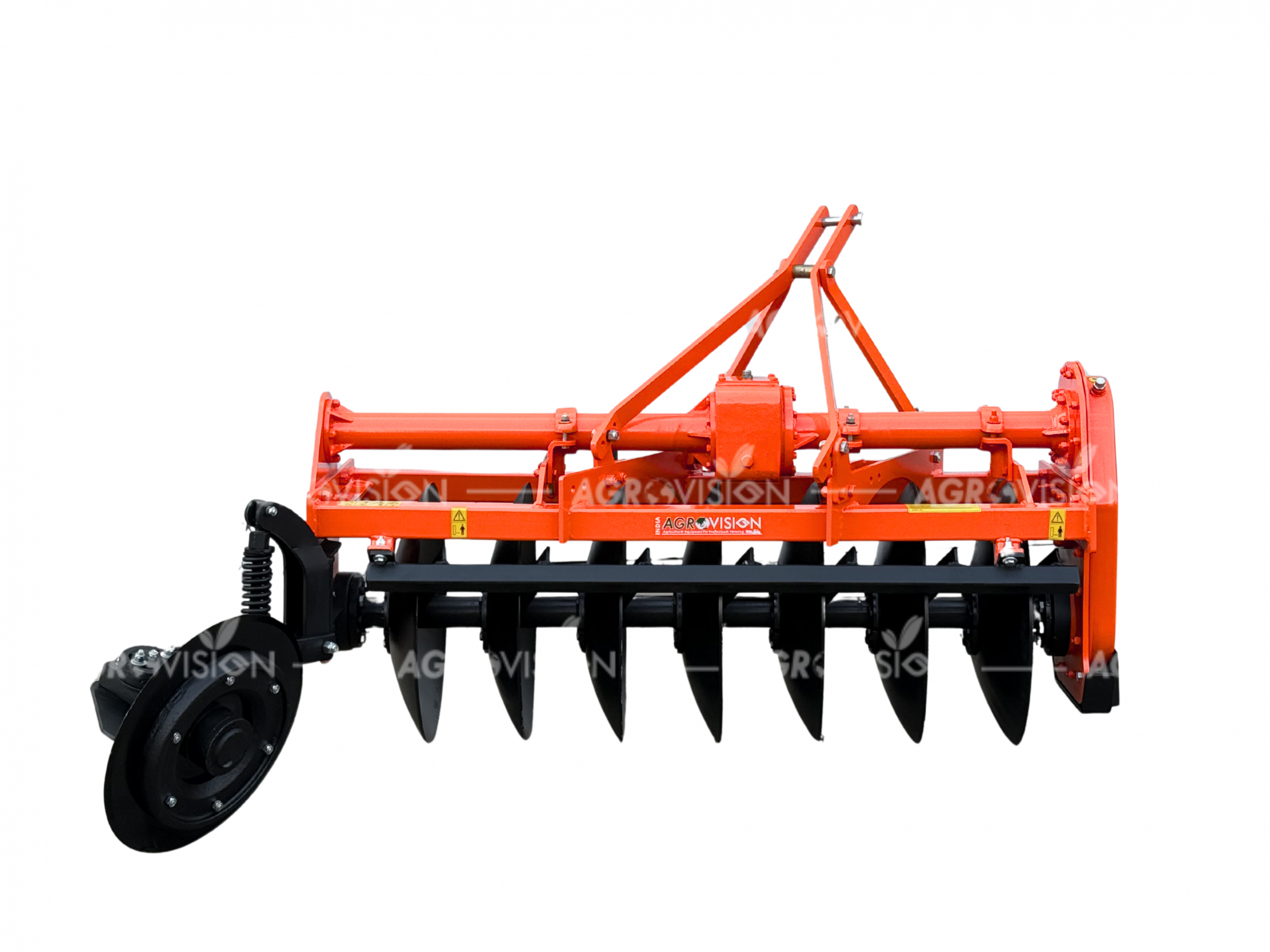

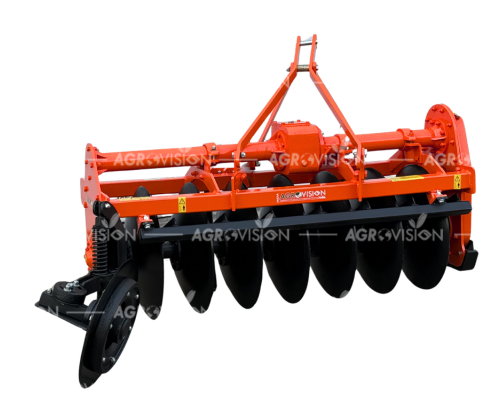

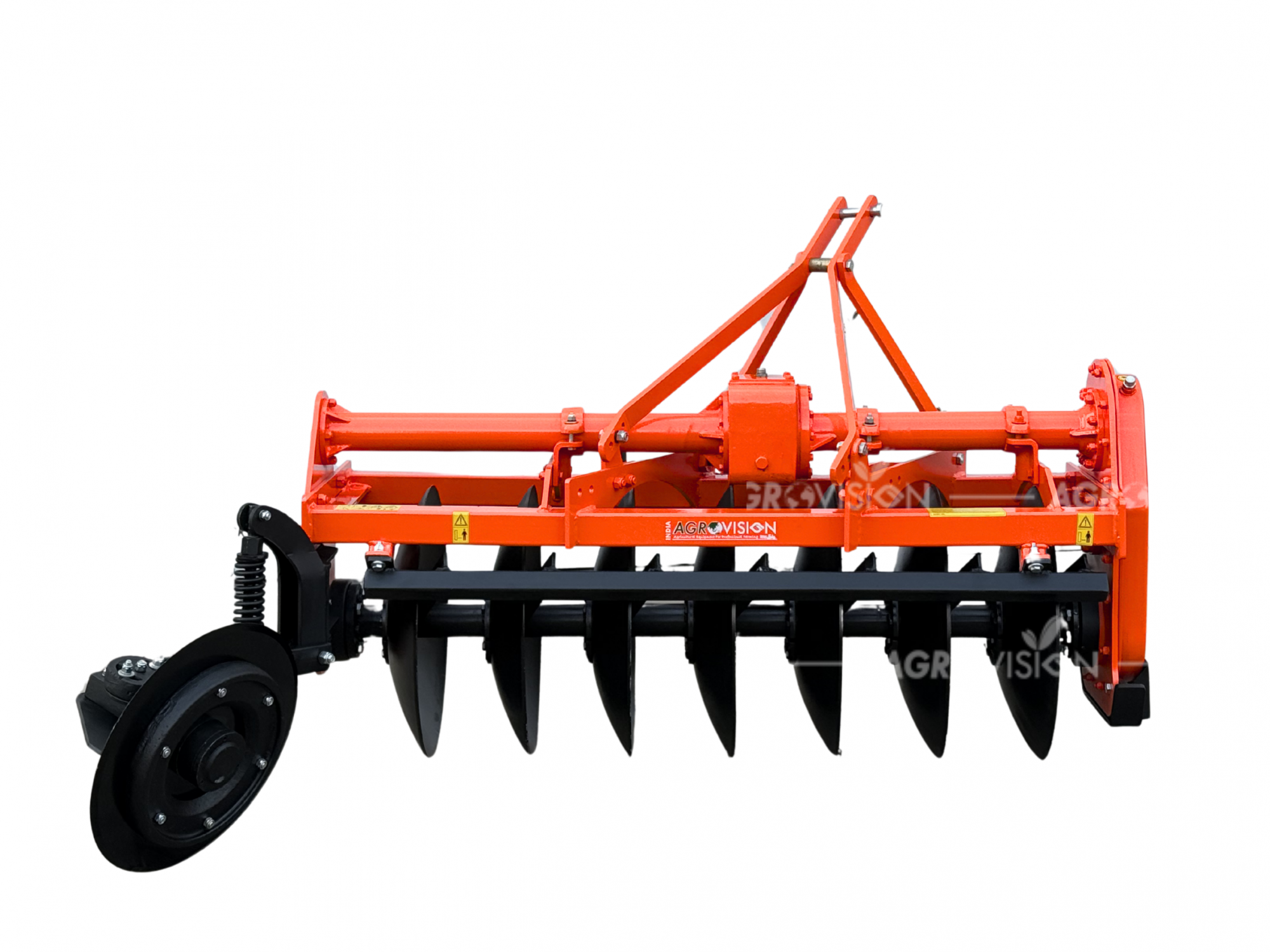

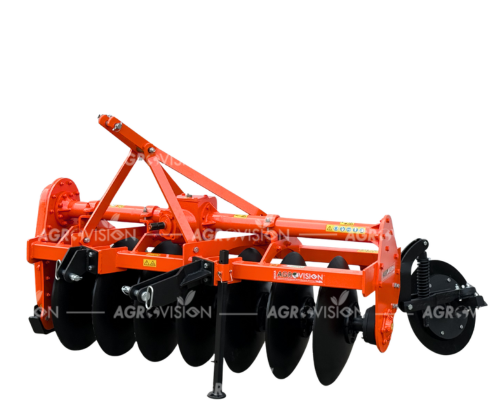

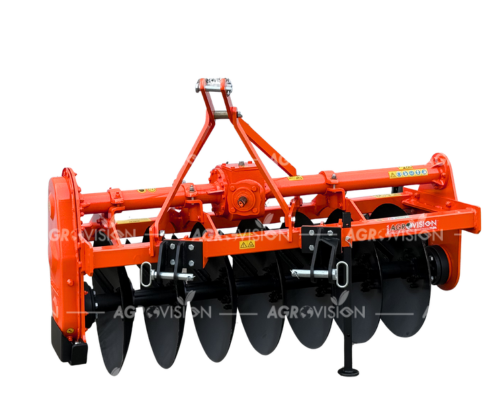

ROTARY POLY DISC HARROW (PLOUGH)

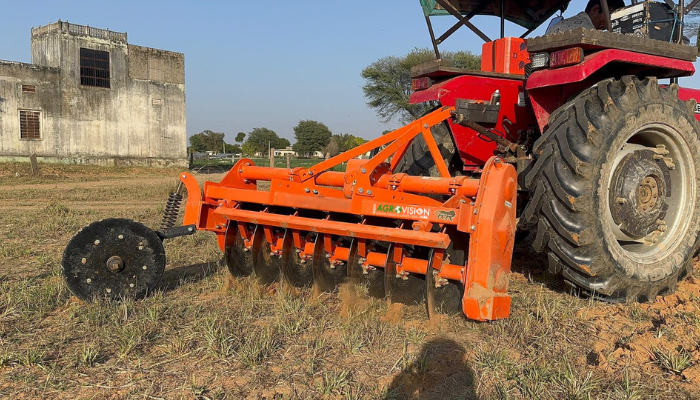

Rotary Poly Disc Harrow (Plough) is a PTO-driven tillage implement designed for fast and effective soil breaking and seedbed preparation.
Rotary heavy-duty discs cut, lift, and turn soil efficiently while mixing crop residues for improved fertility and uniform land preparation.
Suitable for hard, dry, and mixed soil conditions, ensuring reliable performance across different field types.
High-speed rotary action breaks clods and controls weeds, creating a fine and level seedbed in fewer passes.
PTO-powered operation improves productivity by covering more area while reducing Laboure and operating time.
Strong frame construction with quality components ensures long service life and low maintenance in demanding use.
Improves soil aeration and moisture retention for better germination and higher crop yields.

Horsepower Required

30 HP - 75 HP

Working Widths

1.0 m - 1.7 m

Hitch Types

CAT-II

Available Colors

Technical Specification

DESCRIPTION	A-PDH5/R	A-PDH7/R	A-PDH9/R
NO. OF DISC	5	7	9

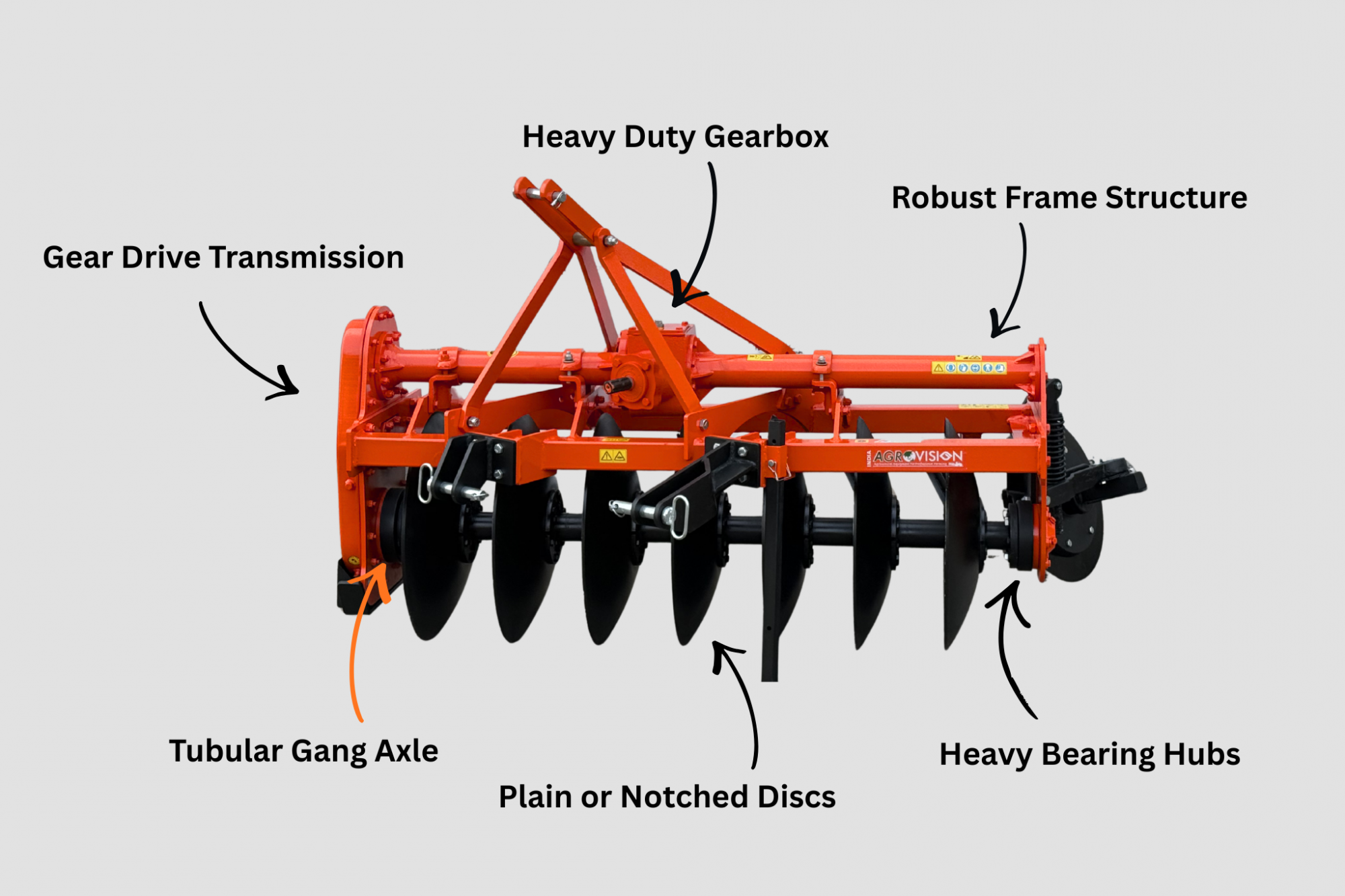

MAIN FRAME & GANG AXLE	72 mm Square Tube & OD 76 mm Round Tube
DISC SIZE & TYPE	560 x 4.5 mm (22") Plain Disc / 610 x 5 mm (24") Plain Disc**
WORKING WIDTH	1050 mm (41.3")	1350 mm (53.1")	1700 mm (66.9")
TRACTOR REQUIRED	30 - 45 HP	45 - 60 HP	60 - 75 HP
APPROX WEIGHT	500 kg (1102 lbs)	570 kg (1257 lbs)	690 kg (1521 lbs)

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
